Запчасти Case IH 8880HP (08-026) - MANIFOLD AND OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS

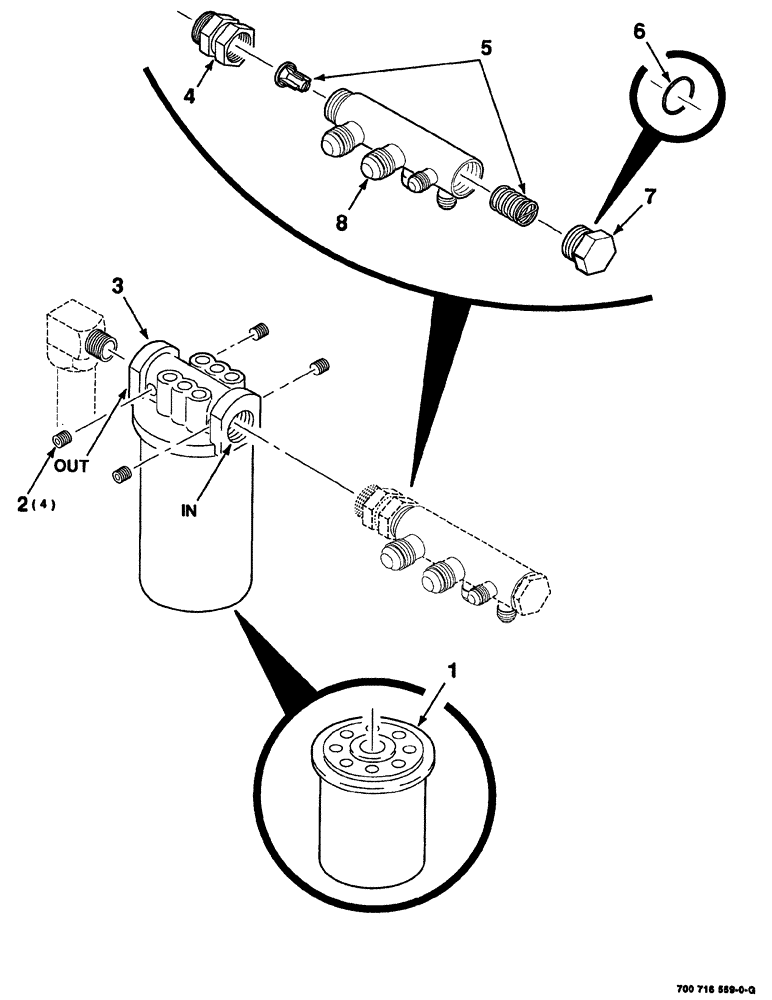

Схема запчастей Case IH 8880HP - (08-026) - MANIFOLD AND OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS
3
8
1
2
4
5
7
6

Артикул

Название

Примечание

Количество

1

7738743

FILTER

KIT, element

1шт.

2

046797

PLUG

1/8-27, NPTF, pipe

4шт.

3

8042574

FILTER ASSY

and head, (Includes Refs. 1 and 2)

1шт.

4

218-5259

HYD CONNECTOR,1 5/8"-12 Male ORB x 1 1/4" NPSM Fem Sw

ADAPTOR swivel

1шт.

5

8040669

VALVE POPPET

and spring kit

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

7

8746117

PLUG

PLUG (Includes Ref. 6)

1шт.

8

700716560

MANIFOLD

1шт.

Выбрано товаров: 8
