Запчасти Case IH 8880HP (08-022) - HYDRAULIC FILTER, MANIFOLD AND COOLER ASSEMBLIES (35) - HYDRAULIC SYSTEMS

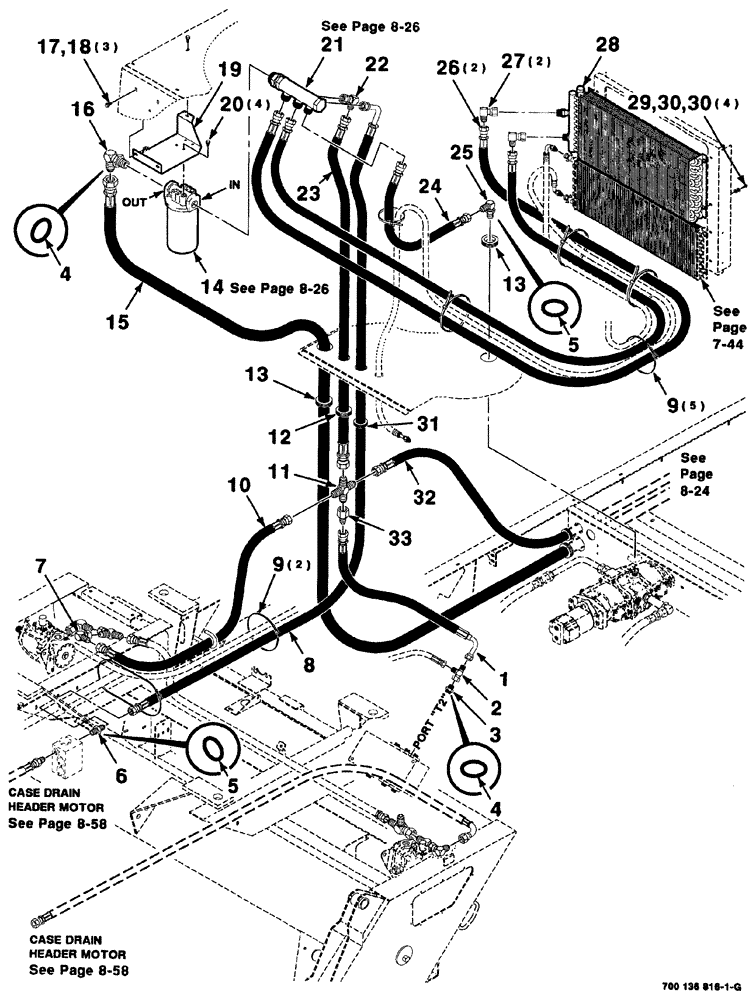

Схема запчастей Case IH 8880HP - (08-022) - HYDRAULIC FILTER, MANIFOLD AND COOLER ASSEMBLIES (35) - HYDRAULIC SYSTEMS
19
2
4
3
15
13
32
12
26
6
30
18
10
22
16
5
28
21
30
9
23
33
17
25
20
9
8
31
29
7
27
11
24
4
1
5
14
13

Артикул

Название

Примечание

Количество

1

700715431

HOSE

hydraulic

1шт.

2

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. Ref. 4)

1шт.

4

738468

O-RING

2шт.

5

738484

O-RING

2шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. Ref 5)

1шт.

7

700701624

ELBOW

90°

1шт.

8

700716564

HOSE

hydraulic

1шт.

9

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

7шт.

10

700716562

HOSE

spacer

1шт.

11

700701795

HYD CONNECTOR

cross

1шт.

12

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

13

727248

GROMMET

2шт.

14

8042574

FILTER ASSY

hydraulic

1шт.

15

700715427

HOSE

hydraulic

1шт.

16

7846702

ELBOW

90°, (Includes Ref. 4)

1шт.

17

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

18

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

3шт.

19

700133574

SUPPORT

filter

1шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

21

700716559

MANIFOLD

ASSEMBLY, by pass

1шт.

22

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

23

700716567

HOSE

hydraulic

1шт.

24

700715424

HOSE

hydraulic

1шт.

25

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 5

1шт.

26

700716565

HOSE

hydraulic

2шт.

27

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

elbow, 90°

2шт.

28

700711961

COOLER

hydraulic oil

1шт.

29

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

30

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

8шт.

31

8027179

GROMMET

1шт.

32

700715429

HOSE

hydraulic

1шт.

33

7791361

FITTING

adapter

1шт.

Выбрано товаров: 33
