(08-010) - HYDR. CYL. ASSY. (TWO SPEED SHIFT) (2 INCH BORE X 4 INCH STROKE) (S.N. CFH0155001 THRU CFH0155391)

Запчасти Case IH 8880HP (08-010) - HYDR. CYL. ASSY. (TWO SPEED SHIFT) (2 INCH BORE X 4 INCH STROKE) (S.N. CFH0155001 THRU CFH0155391) (35) - HYDRAULIC SYSTEMS

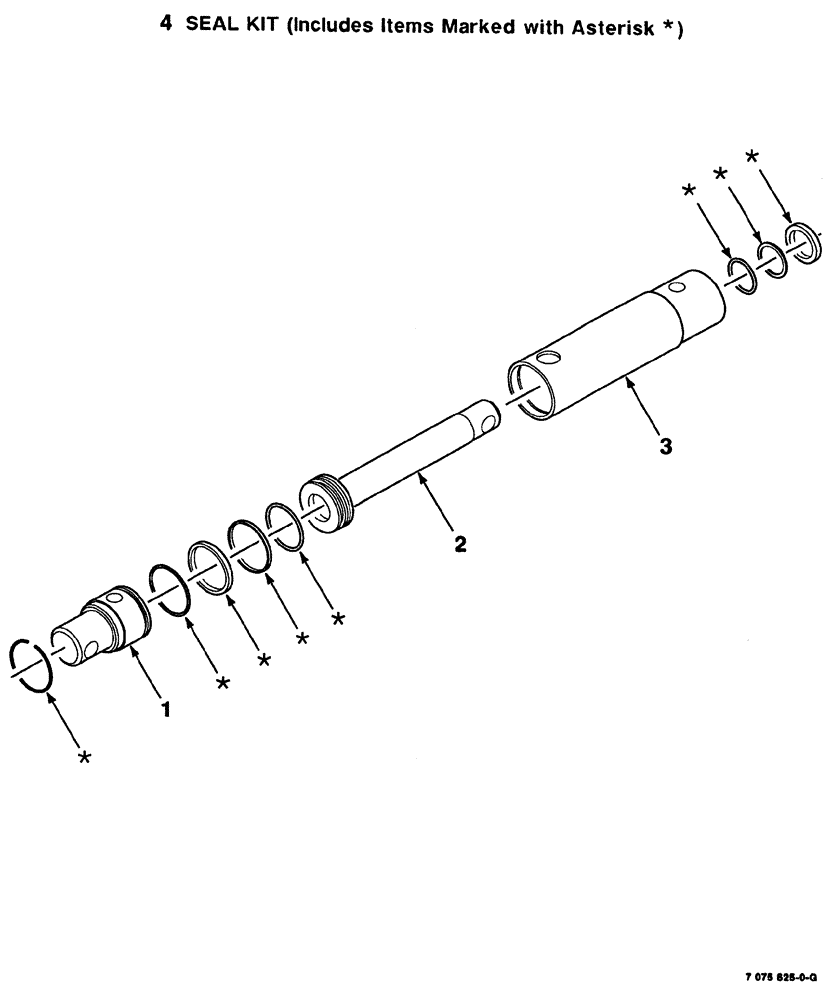

Схема запчастей Case IH 8880HP - (08-010) - HYDR. CYL. ASSY. (TWO SPEED SHIFT) (2 INCH BORE X 4 INCH STROKE) (S.N. CFH0155001 THRU CFH0155391) (35) - HYDRAULIC SYSTEMS
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7075625

CYLINDER

HYDRAULIC ASSEMBLY, (2 inch bore x 4 inch stroke)

1шт.

1

7732241

HEAD

cylinder

1шт.

2

7732266

ROD

PISTON ASSEMBLY

1шт.

3

7732258

TUBE ASSY.

barrel

1шт.

4

7732274

SEAL KIT

KIT

1шт.
