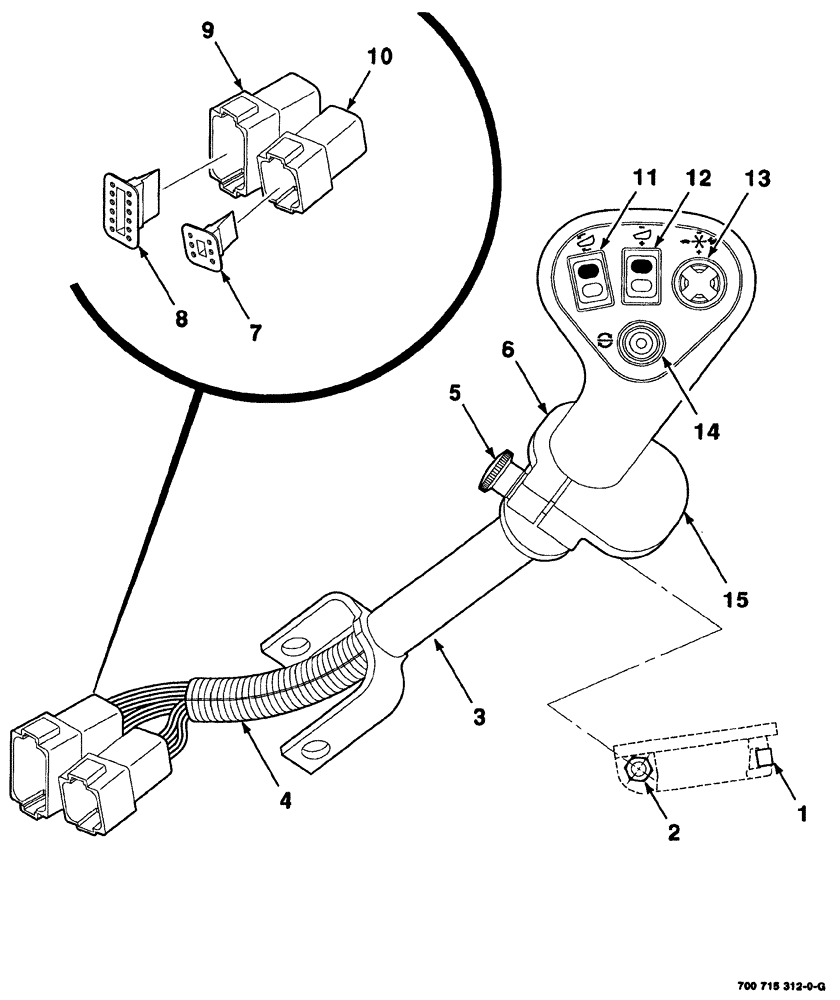

Запчасти Case IH 8880HP (04-024) - CONTROL HANDLE ASSEMBLY (33) - BRAKES & CONTROLS

700715312

HANDLE

CONTROL ASSEMBLY

1шт.

1

1343962C1

CLIP,ELECTRICAL

CASE, palm rest

1шт.

2

425-104

NUT,1/4"-20, Cl 5

1шт.

3

113314A2

CONTROL LEVER

CASE, ASSEMBLY

1шт.

4

120344C1

CONDUIT

CASE

1шт.

5

96860C1

KNOB

CASE, palm rest

1шт.

6

116150A1

SUPPORT

CASE, left hand palm

1шт.

7

225353C1

WEDGE,Lock, Black

CASE

1шт.

8

225390C1

WEDGE

CASE

1шт.

9

225388C1

ELEC CONNECTOR,Male, 12 Pin

CASE

1шт.

10

225350C1

ELEC CONNECTOR,Male, 6 Pin

CASE

1шт.

11

282160A1

SWITCH

CASE, header tilt

1шт.

12

118685A1

SWITCH

CASE, header lift

1шт.

13

118680A1

SWITCH

CASE, (reel speed/swathboard actuator)

1шт.

14

143114A1

SWITCH

CASE, monitor select

1шт.

15

116152A1

SUPPORT

CASE, right hand palm

1шт.
