Запчасти Case IH 8880HP (06-002) - CHAIN CASE AND AXLE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

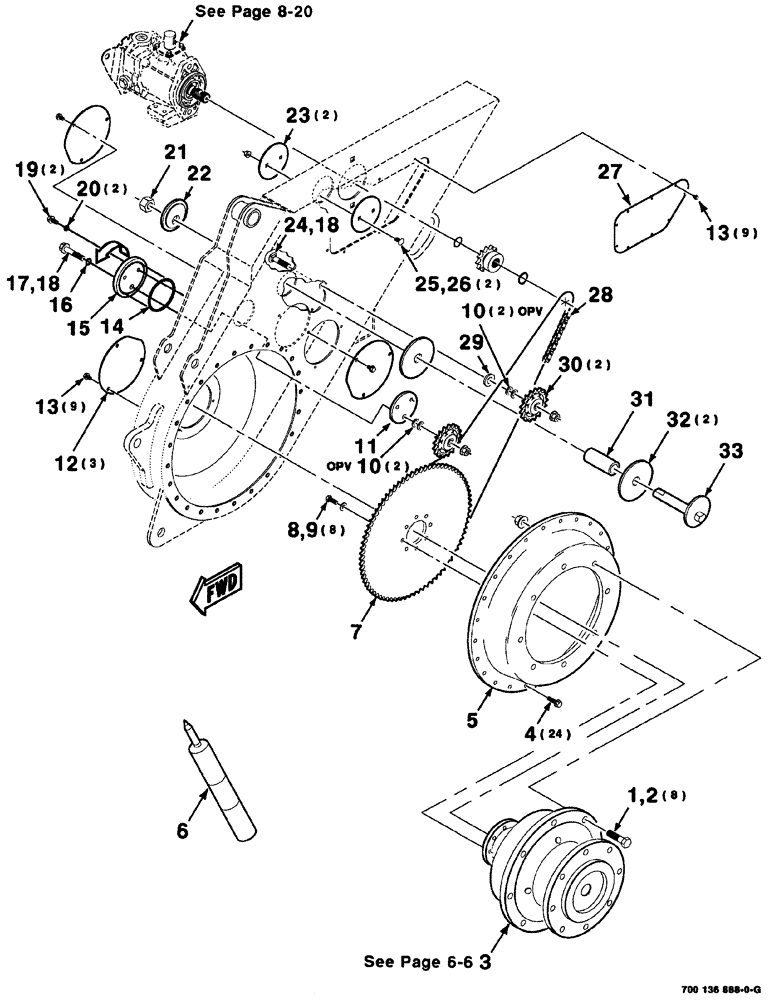

Схема запчастей Case IH 8880HP - (06-002) - CHAIN CASE AND AXLE ASSEMBLY (14) - MAIN GEARBOX & DRIVE
16
10
24
32
2
6
9
1
33
10
23
12
25
29
31
28
26
13
27
20
11
22
7
18
4
19
18
14
3
5
17
21
15
13
8
30

Артикул

Название

Примечание

Количество

1

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

8шт.

2

232-53110

FLANGE NUT,Flg, 5/8"-11

8шт.

3

700715356

GEAR

PLANETARY ASSEMBLY

1шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4, HFS, GR 8

24шт.

5

700133535

PLATE

WA, hub

1шт.

6

700716946

SEALANT

SEALANTsilicone

1шт.

7

700136890

SPROCKET ASSY.

50A76, tooth

1шт.

8

328-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

9

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

8шт.

10

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 x 18, gauge, NRMB

4шт.

11

700715353

CAM

1шт.

12

235515

COVER

PLATE

3шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

14

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

15

700150842

COVER

CAM

1шт.

16

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

17

700710849

BOLT

1/2-13 x 2-1/2, HFS, GR 8

1шт.

18

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13, HFTLN, GR/G

2шт.

19

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

20

734665

O-RING

2шт.

21

425-1014

NUT,7/8"-9, G5

1шт.

22

51200235

CAM

1шт.

23

700133533

PLATE

cover

2шт.

24

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

25

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

26

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

2шт.

27

444463

COVER

1шт.

28

700717042

CHAIN (AG)

roller, endless, #50

1шт.

29

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

30

7087398

DRIVE SPROCKET

idler, 17 tooth

2шт.

31

700133532

SPACER

1шт.

32

700133531

WASHER

2шт.

33

700708274

JACKSHAFT

1шт.

Выбрано товаров: 33
