Запчасти Case IH 8880HP (10-042) - FUEL INJECTION SYSTEM - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE

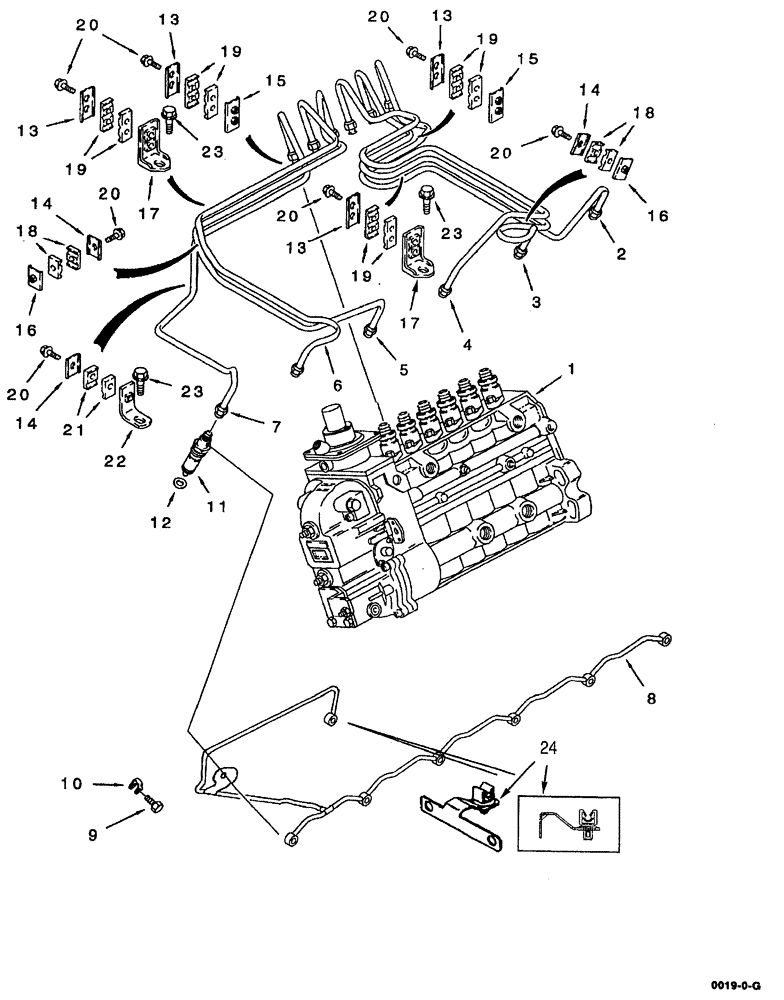

Схема запчастей Case IH 8880HP - (10-042) - FUEL INJECTION SYSTEM - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE
23
19
11
19
16
24
5
20
23
4
18
15
13
10
20
3
21
8
15
1
13
22
13
19
20
2
14
14
7
9
14
23
17
13
18
16
20
20
12
17
19
6
20

Артикул

Название

Примечание

Количество

1

J929403

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY, fuel injection, new, parts list Fig. 10-49

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 1 cylinder

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 2 cylinder

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 3 cylinder

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 4 cylinder

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 5 cylinder

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 6 cylinder

1шт.

8

J284343

MANIFOLD

TUBE, fuel, use with 371045A1 engine

1шт.

8

J933295

MANIFOLD

TUBE, fuel, use with 138067A2 engine

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

7шт.

10

J903380

SEAL

connector

6шт.

Ref. 10, J903380 must be replaced when injector is replaced

1шт.

11

J929490

NOZZLE INJECTION

ASSEMBLY, fuel injection, parts list Fig. 10-51

6шт.

12

J906659

SEAL

injector nozzle, 7 mm tip

6шт.

13

J904519

SUPPORT

tube retaining

2шт.

14

CURJ904711

CLAMP

fuel tube

2шт.

15

J917716

BRACE

fuel tube

1шт.

16

J917717

BRACE

fuel tube

2шт.

17

J282942

BRACKET

fuel tube

1шт.

18

J917746

CLAMP

fuel tube

3шт.

19

J917747

CLAMP

fuel tube

4шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

6шт.

21

J919359

CLAMP

vibration

2шт.

22

J940840

BRACE

fuel tube

1шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

24

J284865

TUBE

tube, use with 138067A2 engine

1шт.

Выбрано товаров: 26
