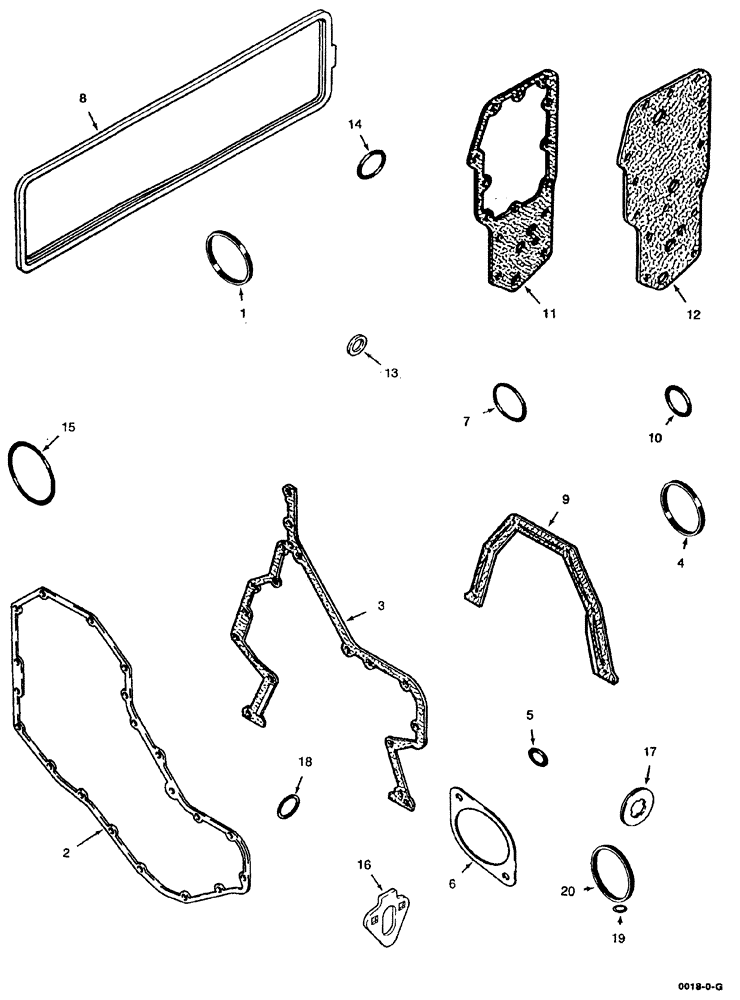

Запчасти Case IH 8880HP (10-040) - GASKET KIT - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE

A77868

SEAL PACKAGE

KIT gasket, cylinder block

1шт.

For complete engine overhaul, order (1) each of valve grind kit, Fig. 10-39, cylinder block kit, oil pan kit, Fig. 10-21, front and rear crankshaft seal kit, Fig. 10-33 and required cylinder head gasket, Fig. 10-23

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

2

J918673

GASKET,1.02mm Thk

front cover

1шт.

3

J931351

GASKET

gear housing

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

5

J913994

O-RING

sealing, timing pin

1шт.

6

J929751

GASKET

access cover plate

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block

1шт.

8

J928832

GASKET

tappet cover

1шт.

9

J928493

GASKET

rear cover retainer, crankshaft

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID, water inlet connection

1шт.

11

J942914

GASKET

oil cooler core

1шт.

12

J942915

GASKET

filter head, engine oil

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID, engine oil filler

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

16

J931059

GASKET

mounting, fuel transfer pump, replaces J931348

1шт.

18

J928759

SEALING WASHER

cover bolt, tappet

8шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel housing plug

1шт.

20

J929457

O-RING

plug, engine oil cooler

1шт.

21

J935032

SEAL

GASKET sealing, fuel injection pump mounting, replaces J930993

1шт.
