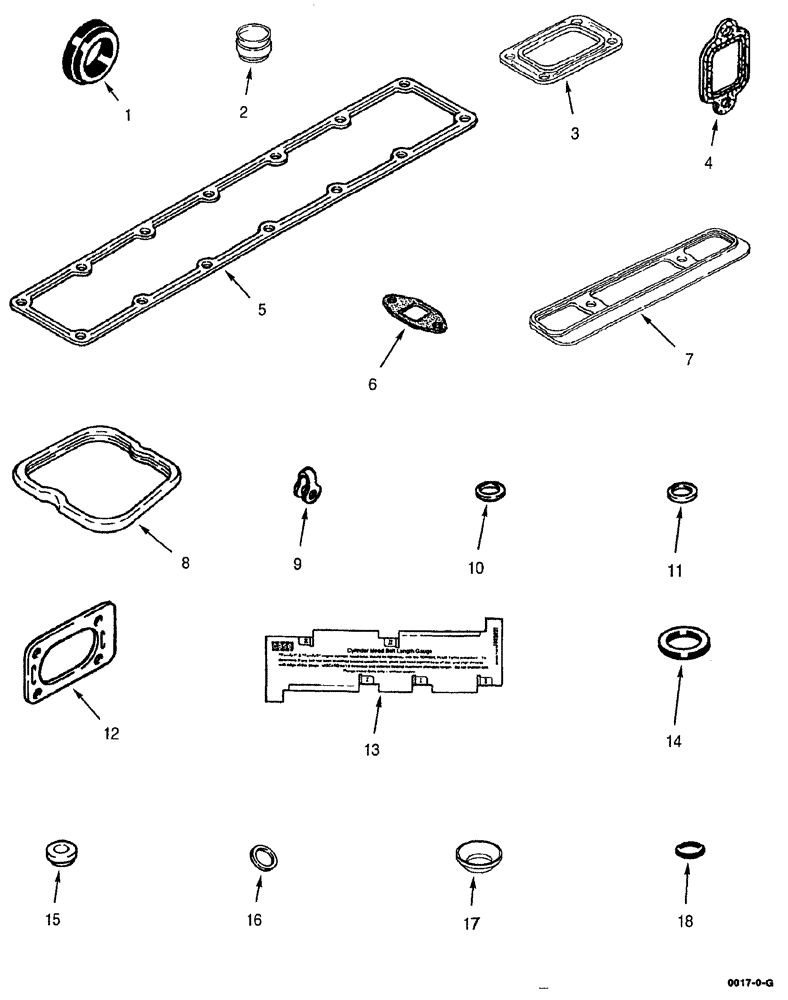

Запчасти Case IH 8880HP (10-038) - GASKET KIT - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE

A77925

GASKET KIT

valve grind, replaces A77871

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, on Fig. 10-23

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J921640

SEAL

valve, identified by color orange with silver band

12шт.

3

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

5

J931347

GASKET

mounting, intake manifold cover

1шт.

6

J931350

GASKET

turbo oil drain tube

1шт.

7

J930426

GASKET

air crossover connection, not used in this application

1шт.

8

J930906

GASKET

SEAL rocker arm cover

6шт.

9

J903380

SEAL

connector, return manifold

6шт.

10

J906659

SEAL

injector nozzle, 7 mm tip

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING sealing, body to nut, injector nozzle assembly

6шт.

12

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

13

J823921

GAUGE

cylinder head, bolt length

1шт.

14

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, rocker arm cover

6шт.

16

J900808

SEAL

injector nozzle, 9 mm tip

6шт.

17

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

18

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.
