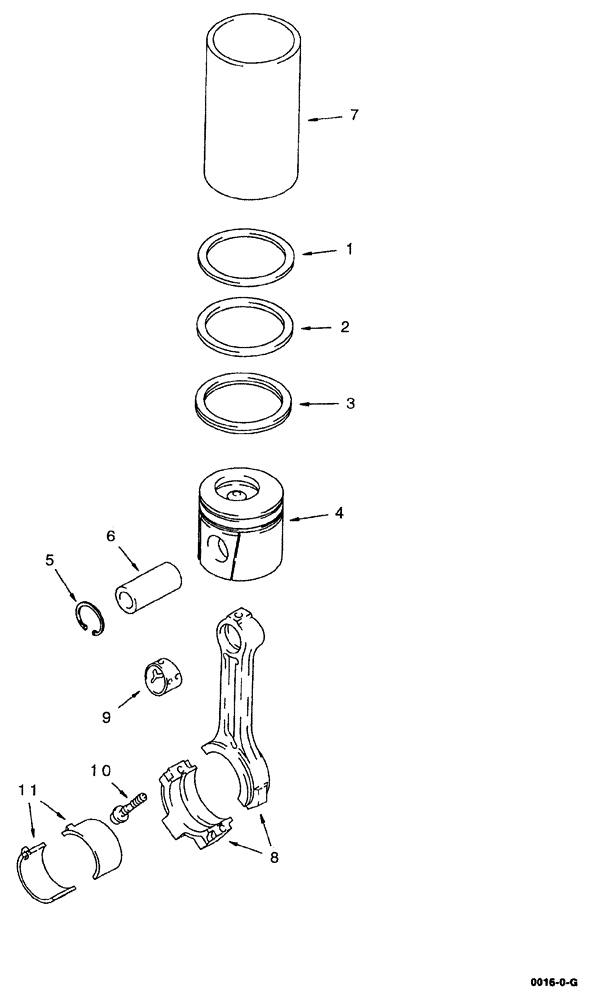

Запчасти Case IH 8880HP (10-036) - PISTONS AND CONNECTING RODS - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

standard, pistons and connecting rods

6шт.

J802746

PISTON RING SET

KIT, standard, pistons and connecting rods

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons and connecting rods

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons and connecting rods

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons and connecting rods

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, pistons and connecting rods

1шт.

5

J901706

RING

snap, pistons and connecting rods

2шт.

6

J919053

PISTON PIN

pistons and connecting rods

1шт.

J802764

PISTON & RINGS KIT

0.5 mm oversize, pistons and connecting rods

6шт.

J802422

PISTON RING SET

KIT, 0.5 mm oversize, pistons and connecting rods

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, 0.5 mm oversize, pistons and connecting rods

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, 0.5 mm oversize, pistons and connecting rods

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, 0.5 mm oversize, pistons and connecting rods

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, pistons and connecting rods

1шт.

5

J901706

RING

snap, pistons and connecting rods

2шт.

6

J919053

PISTON PIN

pistons and connecting rods

1шт.

J802765

PISTON & RINGS KIT

1.0 mm oversize, pistons and connecting rods

6шт.

J802423

PISTON RING SET

KIT, 1.0 mm oversize, pistons and connecting rods

1шт.

1

NSS

NOT SOLD SEPARAT

RING compresssion, top, 1.0 mm oversize, pistons and connecting rods

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, 1.0 mm oversize, pistons and connecting rods

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, 1.0 mm oversize, pistons and connecting rods

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, pistons and connecting rods

1шт.

5

J901706

RING

snap, pistons and connecting rods

2шт.

6

J919053

PISTON PIN

pistons and connecting rods

1шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair (when liner is installed, use J802747 standard piston kit), pistons and connecting rods

1шт.

J942581

ROD, CONNECTING

ASSEMBLY, new

1шт.

JR942581

REMAN-CONNECTING ROD

Assembly, component parts shown on this Fig. do not apply to the remanufactured assembly

1шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

84145405R

REMAN-CONNECTING ROD

8880, 8880HP, Reman For New PN J942581

1шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J941476

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT, upper and lower set, standard, connecting rods

6шт.

11

A77466

BEARING SET

KIT, upper and lower set, 0.25 mm oversize, connecting rods

6шт.

11

A77467

BEARING LINER

KIT, upper and lower set, 0.50 mm oversize, connecting rods

6шт.

11

A77468

BEARING SET

KIT, upper and lower set, 0.75 oversize, connecting rods

6шт.

11

A77469

BEARING SET

KIT, upper and lower set, 1.00 oversize, connecting rods

6шт.
