Запчасти Case IH 8880HP (10-010) - MANIFOLDS - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE

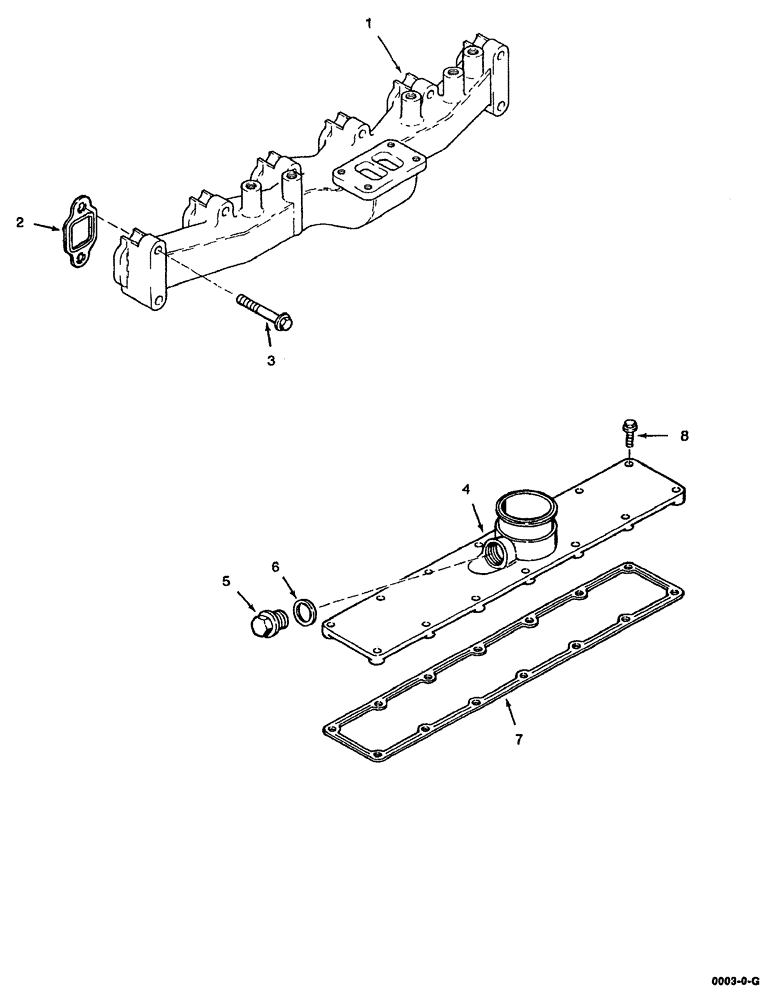

Схема запчастей Case IH 8880HP - (10-010) - MANIFOLDS - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE
5
7
6
8
1
4
3
2

Артикул

Название

Примечание

Количество

1

J931745

MANIFOLD

exhaust

1шт.

2

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

3

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

heavy hex flange, 10 - 1.50 x 65 mm, class 10.9, exhaust manifold

12шт.

A77418

KIT

manifold, no longer available, order Figs. 4 - 6, intake

1шт.

4

J904862

COVER

intake manifold

1шт.

5

J907185

PLUG

manifold, intake

1шт.

6

J906773

WASHER

plug sealing, intake manifold

1шт.

7

J931347

GASKET

mounting, intake cover, manifold

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Intake manifold

14шт.

Выбрано товаров: 9
