(07-056) - FAN SHROUD AND OIL COOLER SUPPORT ASSEMBLIES (8880HP)

Запчасти Case IH 8880HP (07-056) - FAN SHROUD AND OIL COOLER SUPPORT ASSEMBLIES (8880HP) (10) - ENGINE

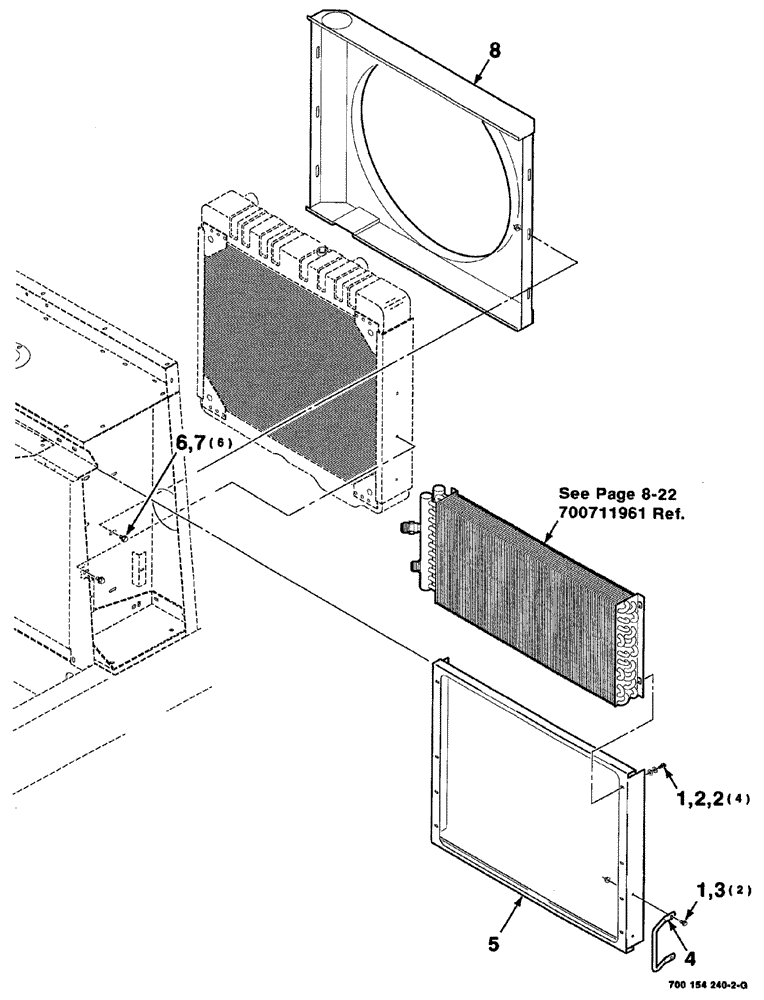

Схема запчастей Case IH 8880HP - (07-056) - FAN SHROUD AND OIL COOLER SUPPORT ASSEMBLIES (8880HP) (10) - ENGINE
3
4
7
6
2
1
1
2
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

2

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

8шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

4

6829360

HANDLE

1шт.

5

700130063

SUPPORT

cooler

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

8

700154244

PANEL

shroud, WA, fan

1шт.

Выбрано товаров: 8
