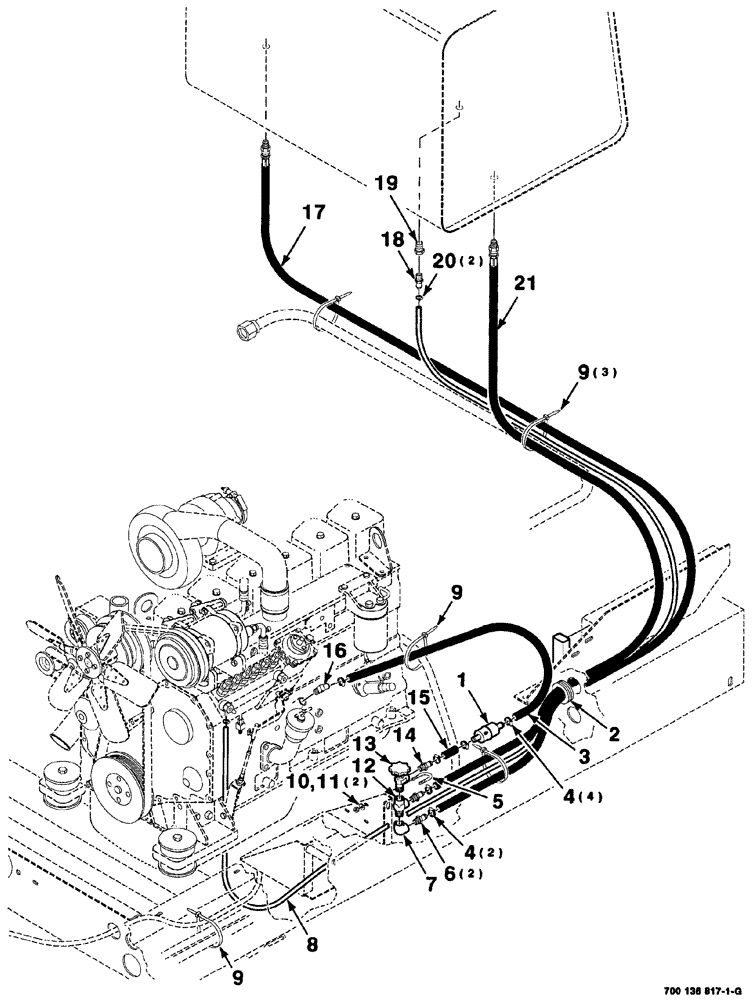

Запчасти Case IH 8880HP (02-024) - FUEL LINE MOUNTING ASSEMBLIES (10) - ENGINE

1

194199A1

FUEL FILTER

fuel

1шт.

2

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

3

700716574

HOSE

fuel

1шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

5

700134311

U-BOLT,U, 1/4" - 20 x 1.75"

BOLT "U" 1/4-20

1шт.

6

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

insert, barbed

2шт.

7

217-1052

ELBOW,3/8" - 18 NPTF Female

90°

1шт.

8

700115723

FUEL HOSE,0.31" ID x 88.58", SAE 30R9

Fuel

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, cable

5шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

2шт.

11

425-104

NUT,1/4"-20, Cl 5

2шт.

12

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

male, run

1шт.

13

700715390

VALVE

shutoff

1шт.

14

700715389

FITTING

BARB beaded hose

1шт.

15

700715374

HOSE

fuel

1шт.

16

197095A1

ELBOW

90°

1шт.

17

700715473

HOSE

fuel

1шт.

18

7746662

INSERT

beaded

1шт.

19

31-512

REDUCER,3/8"-18 Male NPTF x 1/8"-27 Female NPTF

BUSHING

1шт.

20

7721020

HOSE CLAMP

2шт.

21

700715476

HOSE

fuel

1шт.
