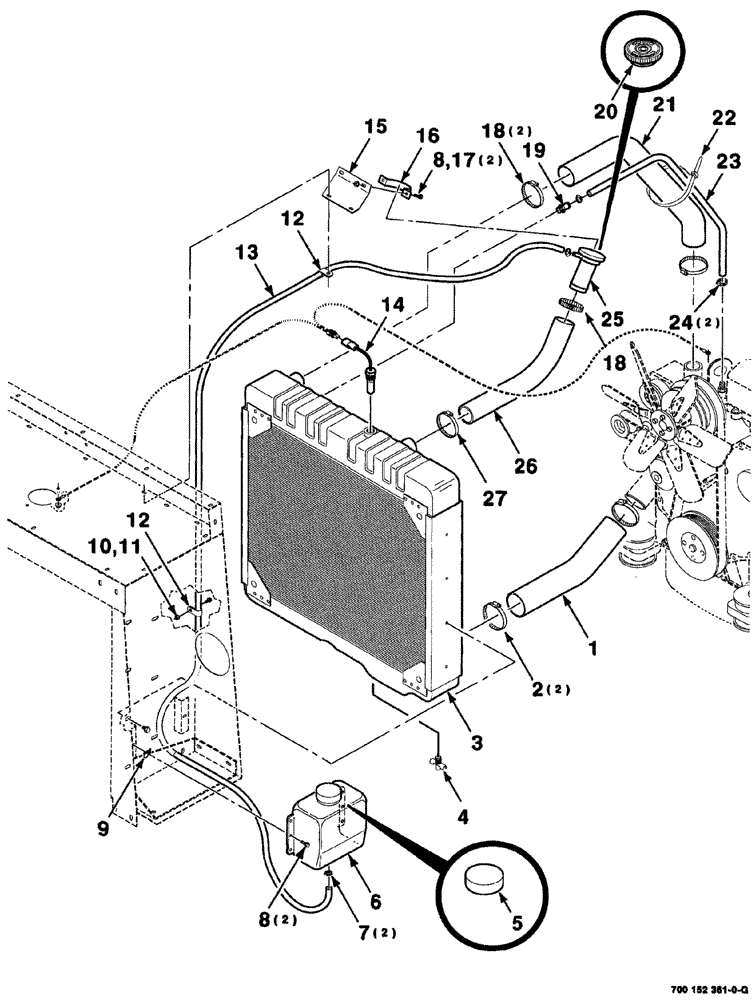

Запчасти Case IH 8880HP (02-018) - RADIATOR, HOSES AND MOUNTING ASSEMBLY (S.N. CFH0155350 AND LATER) (10) - ENGINE

1

700719361

RADIATOR HOSE,57.15 mm ID x 281.00 mm, SAE 20R4 CLASS D1

Lower

1шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

T- bolt

2шт.

3

700719358

RADIATOR

ASSEMBLY

1шт.

4

539787R1

COCK, DRAIN

1шт.

5

700706181

CAP

threaded

1шт.

6

700705626

TANK

reservoir (Includes Ref. 5)

1шт.

7

7721020

HOSE CLAMP

2шт.

8

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4, HWHMS

4шт.

9

74807

NUT

1/4-20, speed

1шт.

10

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

11

1703354

NUT

1/4-20, HFTLN, GR/G

1шт.

12

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

13

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

drain

1шт.

14

700717198

SWITCH

level, water

1шт.

15

700152376

SUPPORT

HOSE

1шт.

16

700134167

CLAMP

HOSE

1шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

18

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

T- bolt

3шт.

19

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

insert, hose

1шт.

20

700726051

CAP

radiator

1шт.

21

700719360

RADIATOR HOSE,44.45 mm ID x 508.00 mm, SAE 20R4 CLASS D1

Upper

1шт.

22

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

1шт.

23

700715397

HOSE

overflow

1шт.

24

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

25

700715420

CAP

ASSEMBLY (Includes Ref. 20)

1шт.

26

700719359

RADIATOR HOSE,50.80 mm ID x 234.50,95.27 mm, SAE 20R4 CLASS D1

Upper

1шт.

27

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

1шт.
