Запчасти Case IH 8880HP (02-016) - RADIATOR, HOSES AND MOUNTING ASSEMBLY (10) - ENGINE

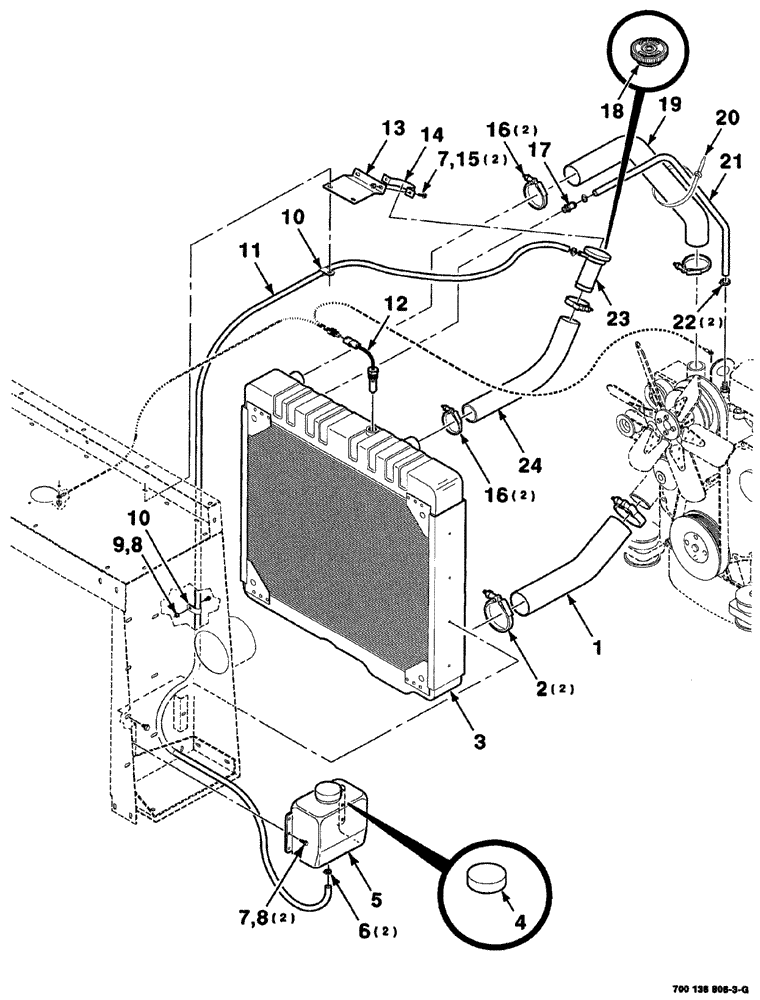

Схема запчастей Case IH 8880HP - (02-016) - RADIATOR, HOSES AND MOUNTING ASSEMBLY (10) - ENGINE
11
12
16
17
6
15
10
14
1
5
24
7
10
3
19
7
8
4
22
20
13
9
18
23
8
21
16
2

Артикул

Название

Примечание

Количество

1

700713371

RADIATOR HOSE,57.15 mm ID x 326,53 mm, SAE 20R4 CLASS D1

Lower

1шт.

2

214-3248

HOSE CLAMP,57mm - 79mm

T- bolt

2шт.

3

700716492

RADIATOR

ASSEMBLY

1шт.

4

700706181

CAP

threaded

1шт.

5

700705626

TANK

reservoir (Includes Ref. 4)

1шт.

6

7721020

HOSE CLAMP

2шт.

7

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4, HWHMS

4шт.

8

1703354

NUT

1/4-20, HFTLN, GR/G

3шт.

9

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

11

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

drain

1шт.

12

700717198

SWITCH

level, water

1шт.

13

700136844

SUPPORT

HOSE

1шт.

14

700134167

CLAMP

hose

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

16

700715795

CLAMP

hose, T- bolt

4шт.

17

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

insert, hose

1шт.

18

700726051

CAP

radiator

1шт.

19

700713372

RADIATOR HOSE,44.45 mm ID x 173,278,102 mm, SAE 20R4 CLASS D1

Upper

1шт.

20

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

1шт.

21

700713373

HOSE,0.38" ID x 22.05", SAE 20R3 Class D2, SAE J20

Overflow

1шт.

22

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

23

700715420

CAP

ASSEMBLY (Includes Ref. 18)

1шт.

24

700716493

HOSE

radiator, upper

1шт.

Выбрано товаров: 24
