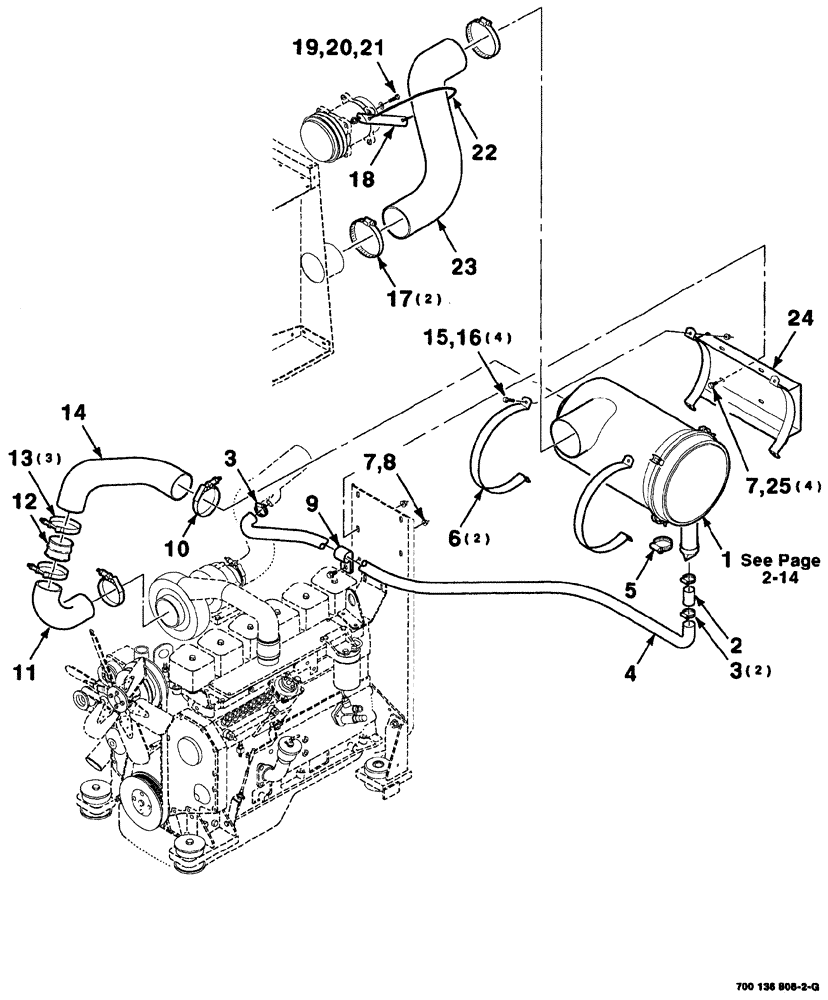

Запчасти Case IH 8880HP (02-012) - AIR CLEANER, HOSES AND MOUNTING ASSEMBLY (10) - ENGINE

1

700716500

AIR CLEANER

ASSEMBLY

1шт.

2

700134201

TUBE,31.75 mm OD, 50 mm Length

1шт.

3

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

3шт.

4

700715690

HOSE

air intake

1шт.

5

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

6

700136855

CLAMP

2шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

8

231-5146

FLANGE NUT,3/8"-16

1шт.

9

CAS755777

CLAMP

hose

1шт.

10

700716495

CLAMP

hose

1шт.

11

700715208

HOSE

air

1шт.

12

700715210

TUBE,101.6 mm OD, 76.2 mm Length

intake

1шт.

13

214-21118

CLAMP,#118, 4.56"-4.87", T-Bolt

hose

3шт.

14

700716497

INTAKE AIR HOSE,101.60 mm ID, 114.30 mm ID, SAE J200

1шт.

15

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1, HWHMS

4шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

4шт.

17

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

2шт.

18

700136862

SUPPORT

hose

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C

1шт.

20

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

1шт.

21

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

1шт.

22

529070

CABLE TIE,368.3mm L

CABLE STRAP TIE hose/cable

1шт.

23

700716499

HOSE

air

1шт.

24

700136851

CHANNEL

WA

1шт.

25

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

4шт.
