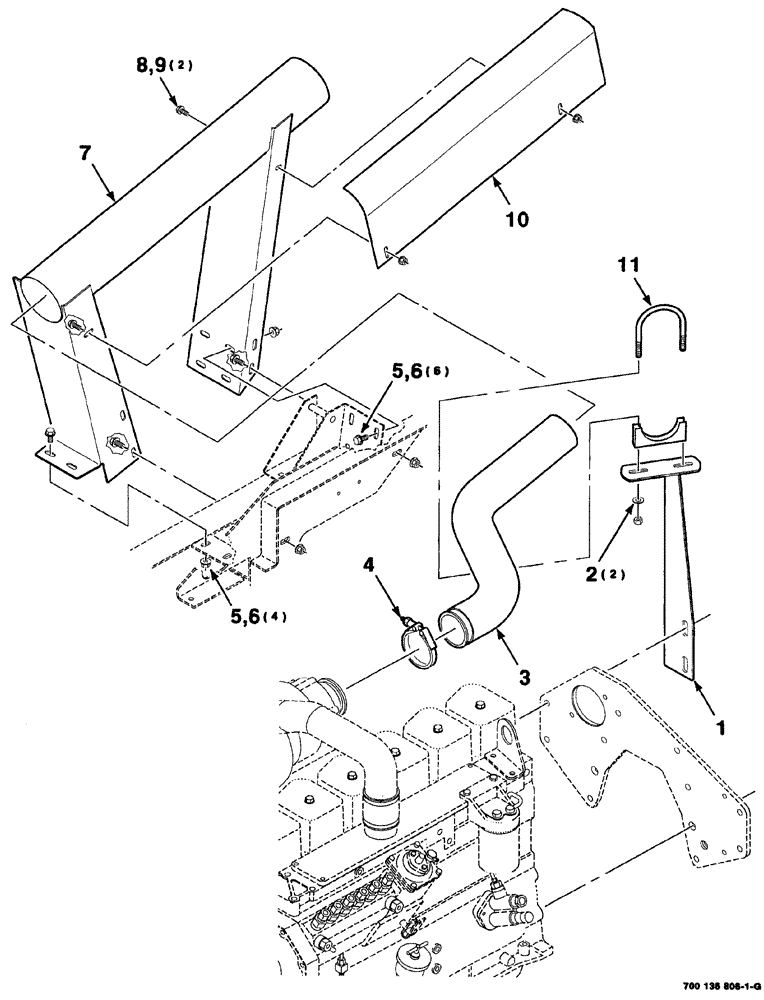

Запчасти Case IH 8880HP (02-010) - ENGINE EXHAUST AND MOUNTING ASSEMBLY (10) - ENGINE

1

700136865

SUPPORT

WA

1шт.

2

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

2шт.

3

700716496

PIPE

exhaust

1шт.

4

700708544

CLAMP

T- bolt

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

10шт.

7

700136856

PIPE

WA exhaust

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

2шт.

10

700136860

SHIELD

exhaust

1шт.

11

722769

CLAMP

exhaust

1шт.
