(02-008) - U-JOINT ASSEMBLY (REAR)

Запчасти Case IH 8880HP (02-008) - U-JOINT ASSEMBLY (REAR) (10) - ENGINE

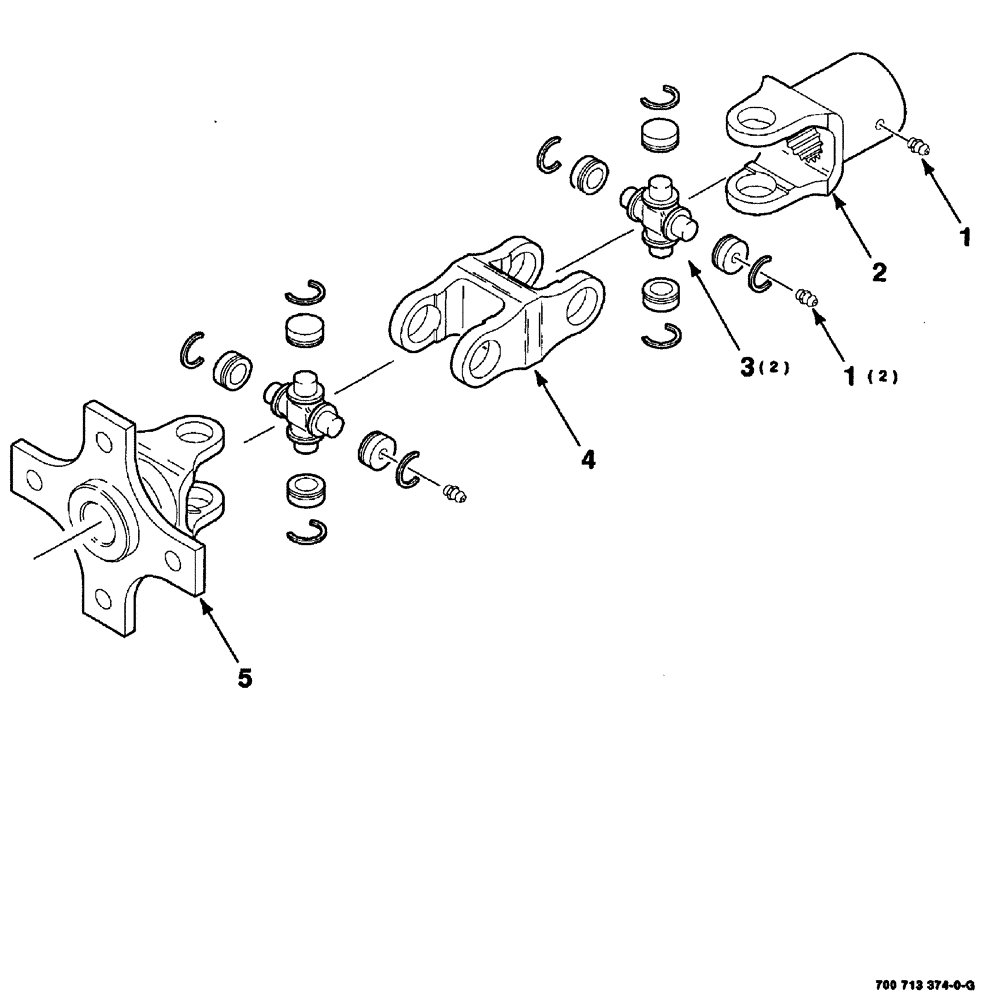

Схема запчастей Case IH 8880HP - (02-008) - U-JOINT ASSEMBLY (REAR) (10) - ENGINE
1
4
5
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700713374

YOKE

UNIVERSAL JOINT YOKE complete

1шт.

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

2

700713403

YOKE

UNIVERSAL JOINT YOKE splined

1шт.

3

700713672

KIT

cross and bearing

2шт.

4

801506

YOKE

UNIVERSAL JOINT YOKE double

1шт.

5

700713671

YOKE

UNIVERSAL JOINT YOKE flanged

1шт.
