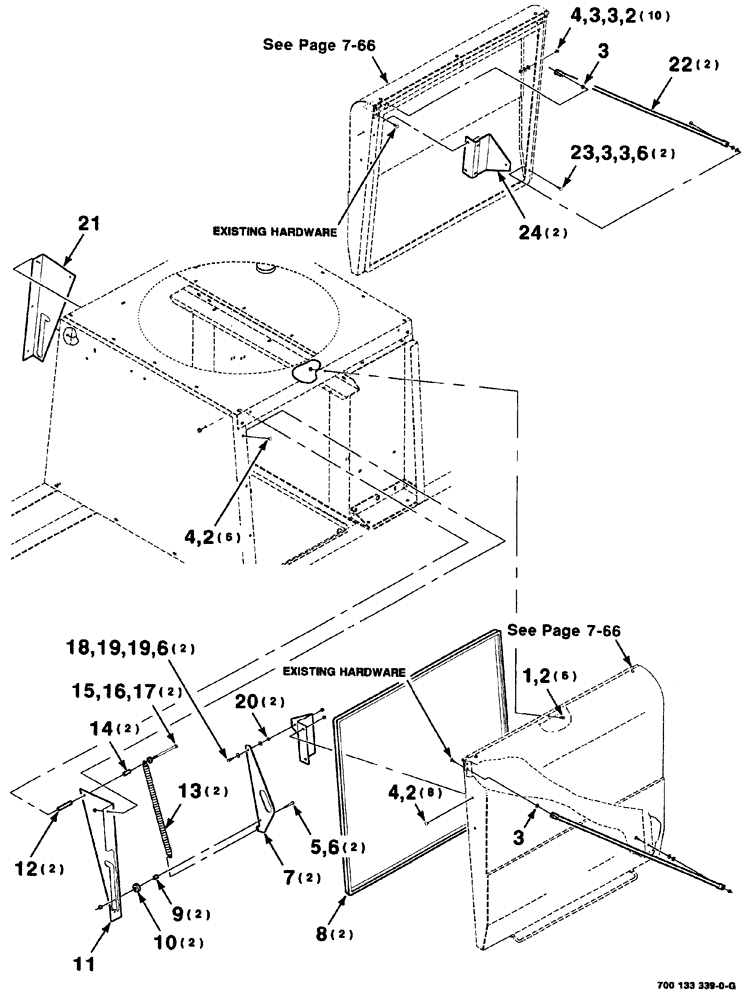

Запчасти Case IH 8880HP (07-064) - DOOR MOUNTING ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

30шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

26шт.

4

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2, RHSNB

24шт.

5

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1/4-20 x 1-3/4, C

2шт.

6

1703354

NUT

1/4-20, HFTLN, GR IG

6шт.

7

700134255

LINK

door

2шт.

8

700715486

SEAL

trim

2шт.

9

700134252

SPACER

2шт.

10

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

2шт.

11

700134256

SUPPORT

door, left

1шт.

12

700134253

SPACER

2шт.

13

858894

SPARE PART

extension

2шт.

14

700111576

SPACER

2шт.

15

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

2шт.

16

700150294

SPACER

2шт.

17

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

2шт.

18

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1, C

2шт.

19

495-21031

WASHER,1/4"

4шт.

20

425-104

NUT,1/4"-20, Cl 5

2шт.

21

700134257

SUPPORT

door, right

1шт.

22

700134251

PIPE

support

2шт.

23

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4, RHSNB

2шт.

24

700134258

SUPPORT

door

2шт.
