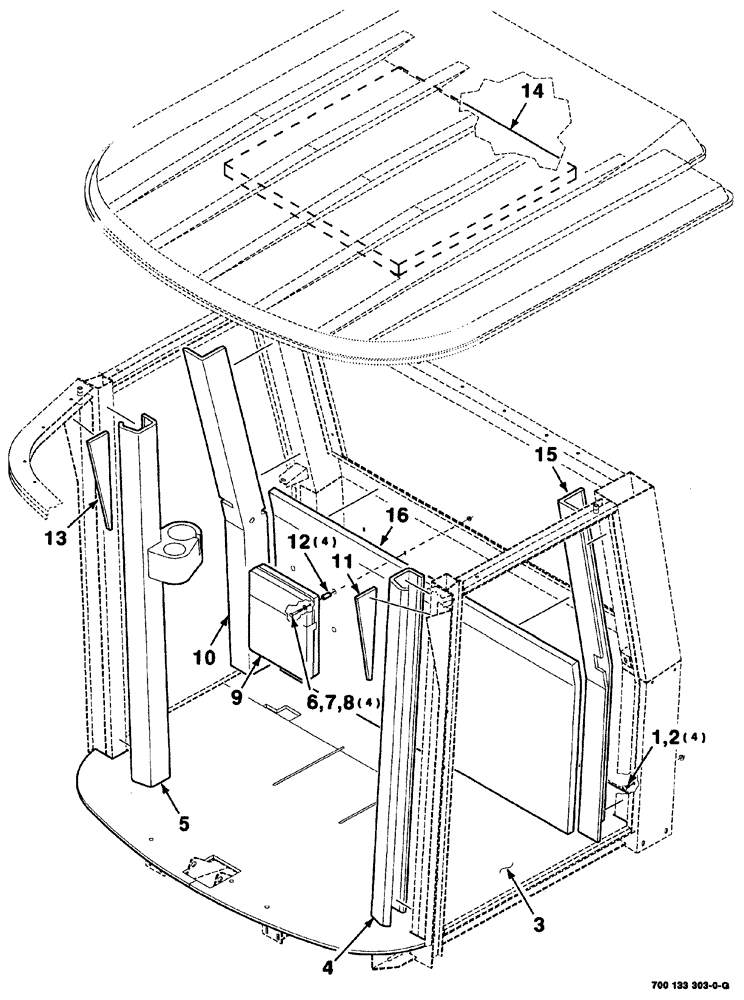

Запчасти Case IH 8880HP (07-032) - UPHOLSTERY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 x 3/4, CRPHMS, GR 60, M

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

3

700715257

FLOOR MAT

1шт.

4

700715258

CHANNEL

left

1шт.

5

700715259

PANEL

channel, right

1шт.

6

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1/4-20 x 1-3/4, C

4шт.

7

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

700714418

HOLDER

manual

1шт.

10

700715262

PANEL

rear, right

1шт.

11

700715263

PANEL

left

1шт.

12

6112080

SPACER

4шт.

13

700715264

PANEL

right

1шт.

14

700715399

FOAM

1шт.

15

700715261

PANEL

rear, left

1шт.

16

700715260

PANEL

rear

1шт.
