(02-004) - U-JOINT ASSEMBLY (FRONT)

Запчасти Case IH 8880HP (02-004) - U-JOINT ASSEMBLY (FRONT) (10) - ENGINE

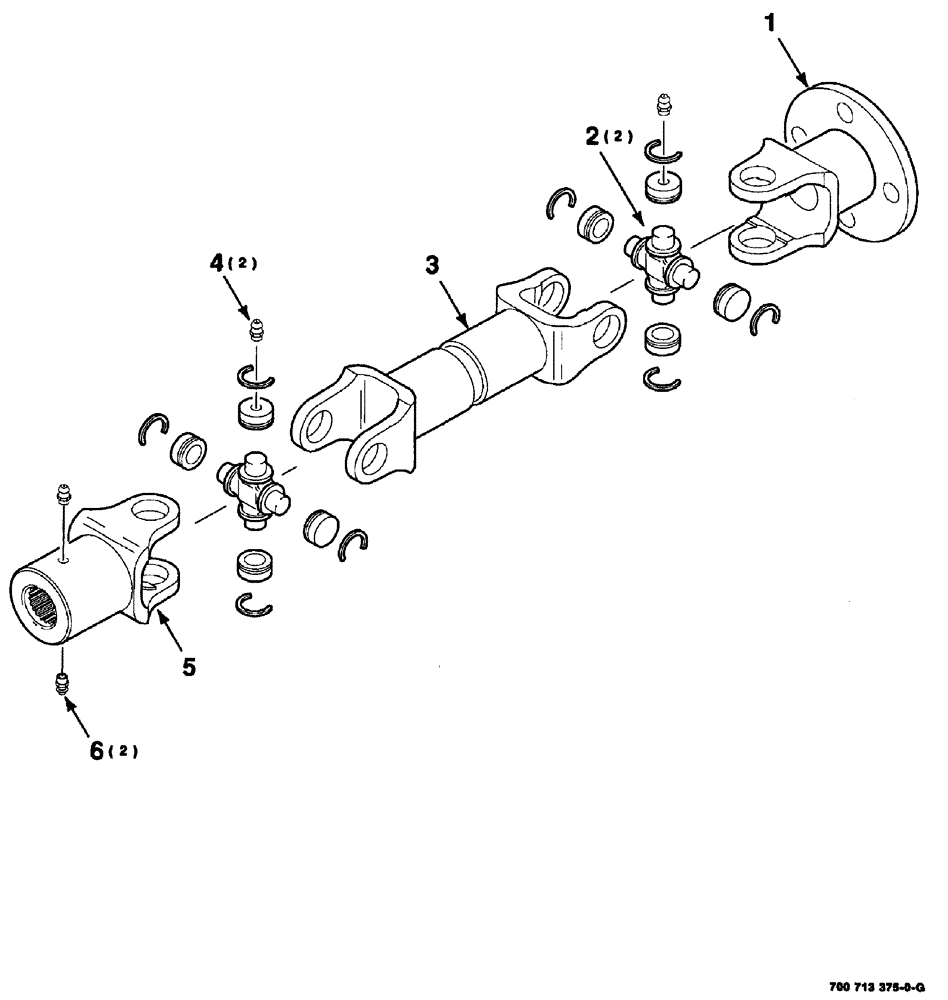

Схема запчастей Case IH 8880HP - (02-004) - U-JOINT ASSEMBLY (FRONT) (10) - ENGINE
6
5
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700713375

YOKE

UNIVERSAL JOINT YOKE complete

1шт.

1

700708203

LINKAGE YOKE

and flange

1шт.

2

700711843

FLEXIBLE JOINT

KIT cross and bearing, (Includes Ref. 4)

2шт.

3

811521

YOKE

UNIVERSAL JOINT YOKE double

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

5

7805849

FORK

yoke, splined

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
