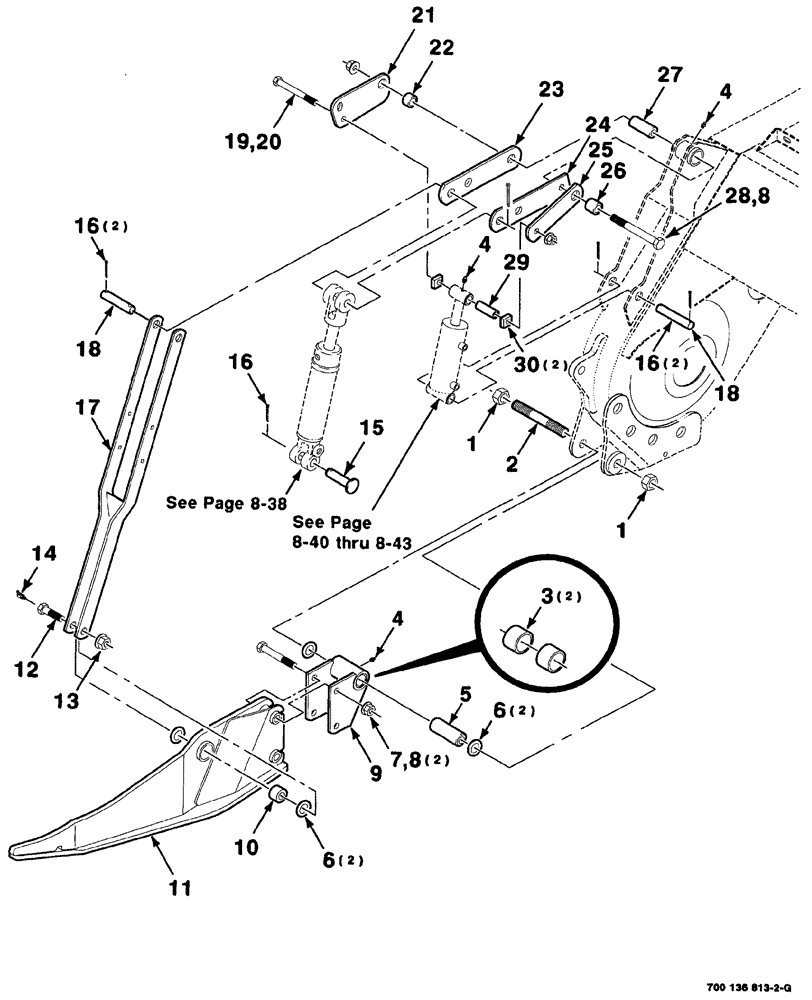

Запчасти Case IH 8880HP (07-080) - LIFT ARM AND FLOTATION ASSEMBLIES - RIGHT (58) - ATTACHMENTS/HEADERS

1

232-41116

LOCK NUT,1"-8, GC

1-8, HTLN, GR/B

2шт.

2

700118693

PIN

1шт.

3

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

5

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

1шт.

6

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

4шт.

7

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

8

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

3шт.

9

700130076

PIVOT

ASSEMBLY (Includes Ref. 3)

1шт.

10

700130098

SPACER

BUSHING

1шт.

11

700136896

ARM

WA lift, right

1шт.

12

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

special

1шт.

13

232-53114

FLANGE NUT,Flg, 7/8"-9

7/8-9, HFTLN, GR/G

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

15

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis1 x 3-1/2

1шт.

16

432-1228

COTTER PIN,3/16" x 1 3/4"

5шт.

17

700136870

LINK

WA

1шт.

18

700111102

PIN

2шт.

19

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

1шт.

20

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

21

700134082

PLATE

1шт.

22

6834071

BUSHING

1шт.

23

700111085

STRAP

1шт.

24

700134085

STRAP

1шт.

25

700134078

STRAP

1шт.

26

6203756

SPACER

1шт.

27

700111080

BUSHING

arm, upper lift

1шт.

28

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

3/4-10 x 6-1/2

1шт.

29

700134077

BUSHING

1шт.

30

700134076

CAM

2шт.
