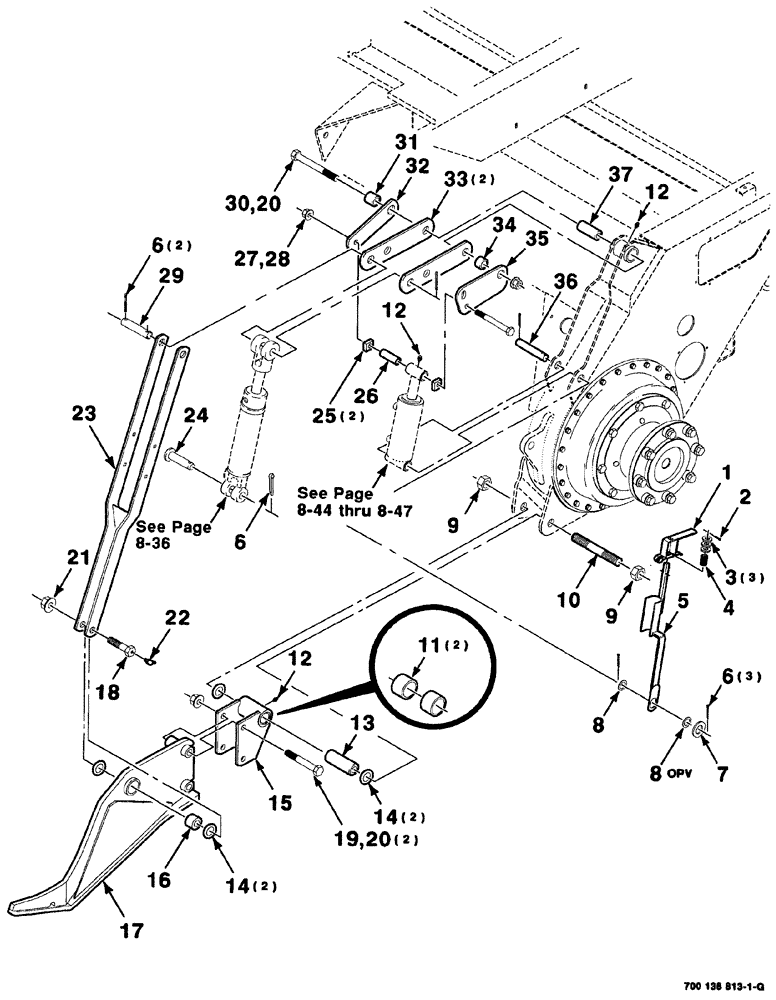

Запчасти Case IH 8880HP (07-078) - LIFT ARM AND FLOTATION ASSEMBLIES - LEFT (58) - ATTACHMENTS/HEADERS

1

700134091

LEVER

WA

1шт.

2

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

3

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

3шт.

4

8058000

SPRING

compression

1шт.

5

700134086

CHANNEL

WA

1шт.

6

432-1228

COTTER PIN,3/16" x 1 3/4"

6шт.

7

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

8

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 x 18 gauge, NRMB

2шт.

9

232-41116

LOCK NUT,1"-8, GC

1-8 HTLN, GR/B

2шт.

10

700118693

PIN

1шт.

11

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

13

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

1шт.

14

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

4шт.

15

700130076

PIVOT

ASSEMBLY (Includes Ref. 11)

1шт.

16

700130098

SPACER

BUSHING

1шт.

17

700136894

ARM

WA lift, left

1шт.

18

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

special

1шт.

19

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

20

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

3шт.

21

232-53114

FLANGE NUT,Flg, 7/8"-9

7/8-9, HFTLN, GR/G

1шт.

22

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

23

700136870

LINK

WA

1шт.

24

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1 x 3-1/2

1шт.

25

700134076

CAM

2шт.

26

700134077

BUSHING

1шт.

27

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

1шт.

28

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

29

700111102

PIN

1шт.

30

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

3/4-10 x 6-1/2

1шт.

31

6203756

SPACER

1шт.

32

700134078

STRAP

1шт.

33

700111085

STRAP

2шт.

34

6834071

BUSHING

1шт.

35

700134082

PLATE

1шт.

36

700134083

PIN

1шт.

37

700111080

BUSHING

arm, upper lift

1шт.
