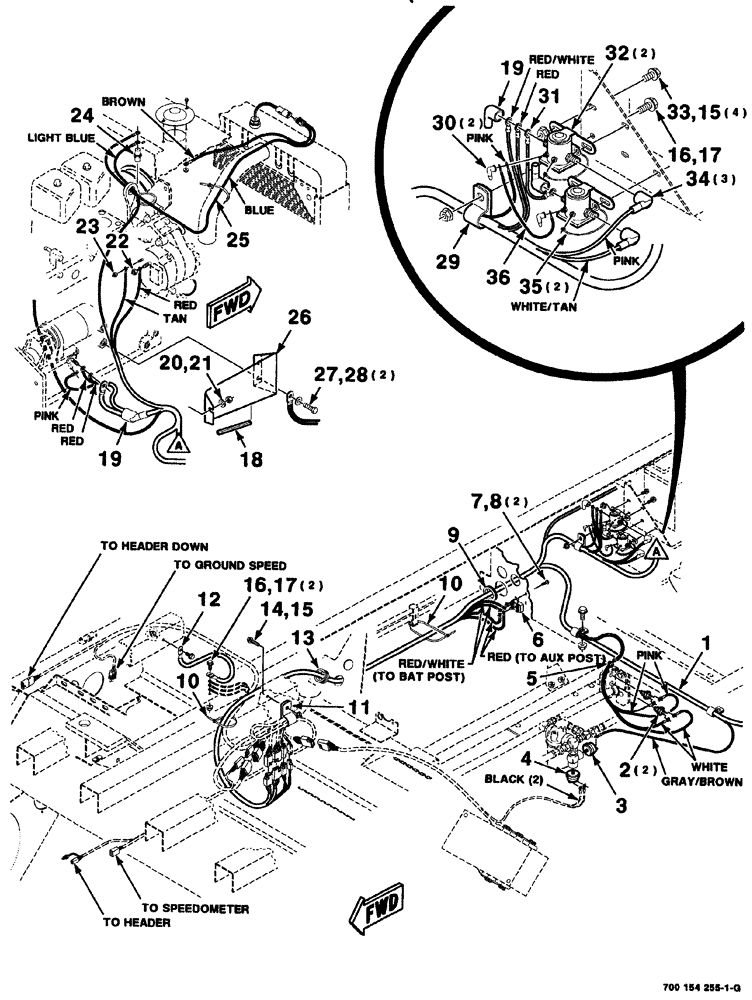

Запчасти Case IH 8880HP (04-034) - ENGINE WIRING ASSEMBLY - FRONT (8880HP) (55) - ELECTRICAL SYSTEMS

1

700726167

HARNESS

wire, rear

1шт.

2

8025637

SWITCH

2шт.

3

700707070

PRESSURE SWITCH

pressure

1шт.

4

700706901

PRESSURE SWITCH

pressure

1шт.

5

7027352

RUBBER

GROMMET

1шт.

6

700715687

BREAKER

ASSEMBLY, double

1шт.

7

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 x 1/2, CRPHMS, GR 60, M

2шт.

8

225-14110

NUT,#10-24

2шт.

9

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

10

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

2шт.

11

CUR755777

PULLEY

line

1шт.

12

722868

CABLE

wire, electrical

1шт.

13

700707095

GROMMET

1шт.

14

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 x 1, HWHMS

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

18

6835060

GROMMET

TRIM

1шт.

19

700707065

SHIELD

term, electrical

2шт.

20

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

1шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

23

825-1405

NUT,M5, Cl 8

1шт.

24

700708219

TEMPERATURE SENDER

1шт.

25

700717347

HARNESS

wiring, coolant

1шт.

26

700117931

SHIELD

starter

1шт.

27

7771843

SCREW

M12 x 1.75 x 16, C

2шт.

28

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

29

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

1шт.

30

700707064

SHIELD

term, electrical

2шт.

31

700715406

ELECTRICAL WIRE

WIRE electrical

1шт.

32

700715578

SOLENOID SWITCH

sealed

2шт.

33

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

34

700707961

SHIELD

term, electrical

3шт.

35

8722621

ELECTRICAL WIRE

WIRE electrical

2шт.

36

741272

ELECTRICAL WIRE

WIRE electrical

1шт.
