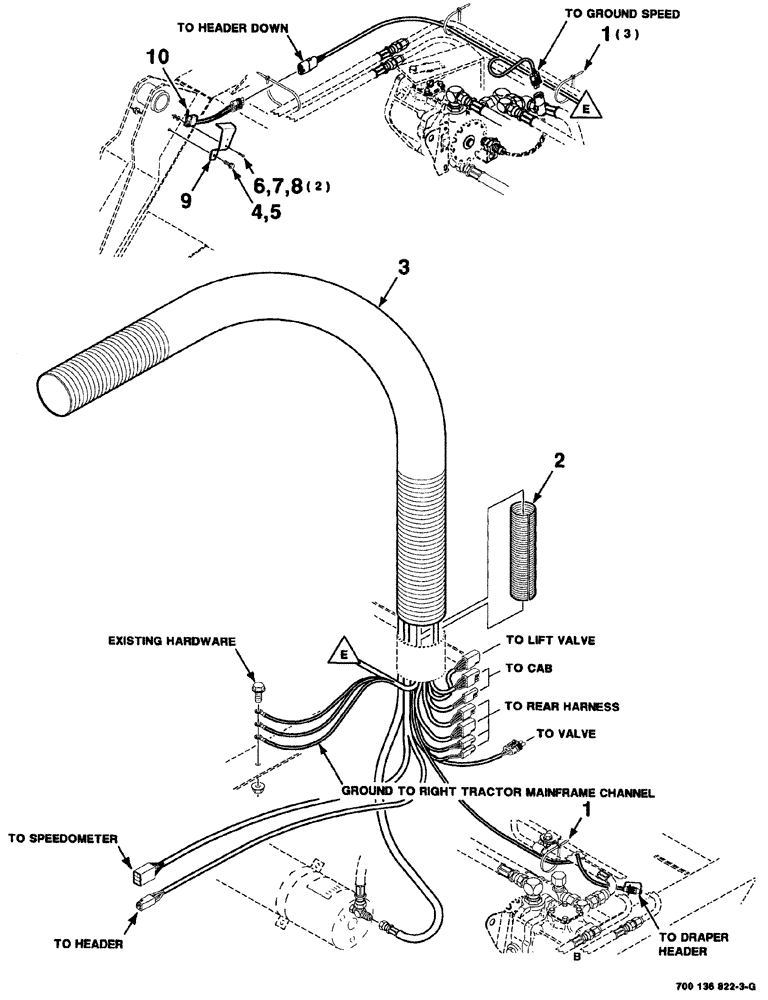

Запчасти Case IH 8880HP (04-020) - CONSOLE WIRING HARNESS ASSEMBLY - LOWER (55) - ELECTRICAL SYSTEMS

1

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP cable tie

4шт.

2

700716874

TUBE

corrigated, loom

1шт.

3

700715299

HOSE

corrigated

1шт.

4

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4, HWHMS

1шт.

5

1703354

NUT

1/4-20, HFTLN, GR/G

1шт.

6

700710188

SCREW

#6-32 x 3/4, CRPHMS, GR 60 M

2шт.

7

495-31016

WASHER,#6

2шт.

8

225-14106

NUT,#6-32

2шт.

9

700134084

MOUNTING CLIP

switch

1шт.

10

700715254

SWITCH

sensor

1шт.
