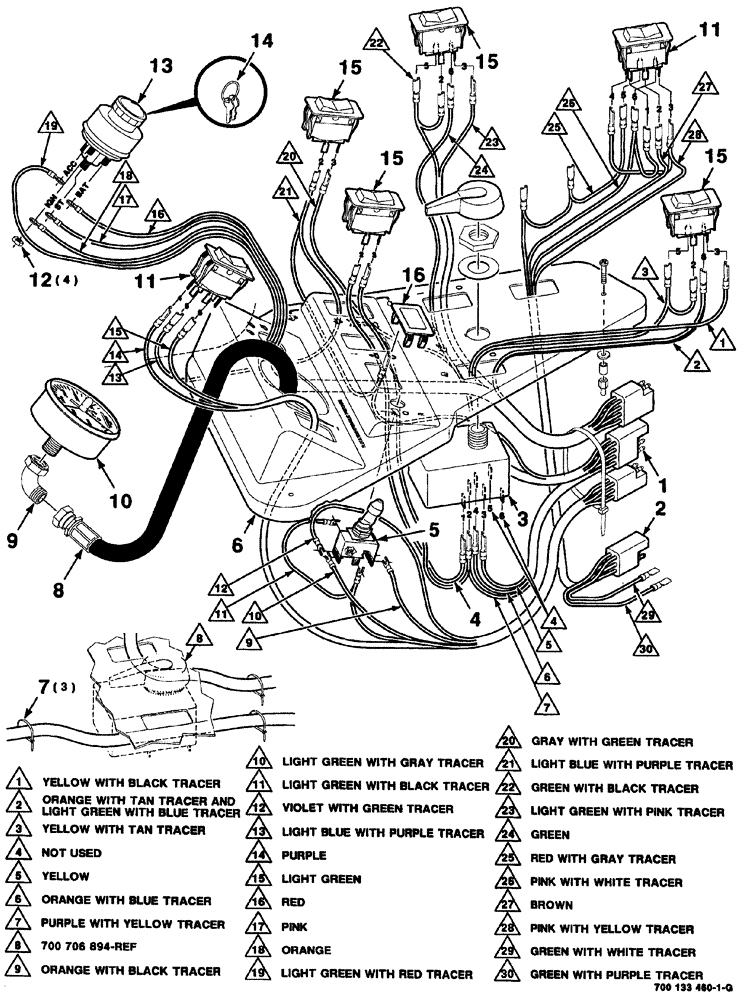

Запчасти Case IH 8880HP (04-012) - CONSOLE PANEL WIRING ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

700715296

HARNESS

wire

1шт.

2

700716507

HARNESS

wire

1шт.

3

700706894

FLASHER SWITCH

turn, flasher

1шт.

4

700715577

ELECTRICAL WIRE

WIRE electrical

1шт.

5

700715295

SWITCH

lever lock

1шт.

6

700715294

COVER

console panel

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie cable

3шт.

8

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

Assy

1шт.

9

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

90° elbow

1шт.

10

700715777

GAUGE

pressure

1шт.

11

700715308

SWITCH

hydraulic pressure

2шт.

12

225-14210

NUT,#10-32

4шт.

13

D75657

SWITCH

starter, (Includes Ref. 14)

1шт.

14

700712801

KEY

1шт.

15

700715309

SWITCH

rocker

4шт.

16

700715303

PLUG

plastic

1шт.
