(08-036) - HYDRAULIC CYLINDER ASSEMBLY - RIGHT (2-3/4 INCH BORE X 8 INCH STROKE)

Запчасти Case IH 8880 (08-036) - HYDRAULIC CYLINDER ASSEMBLY - RIGHT (2-3/4 INCH BORE X 8 INCH STROKE) (35) - HYDRAULIC SYSTEMS

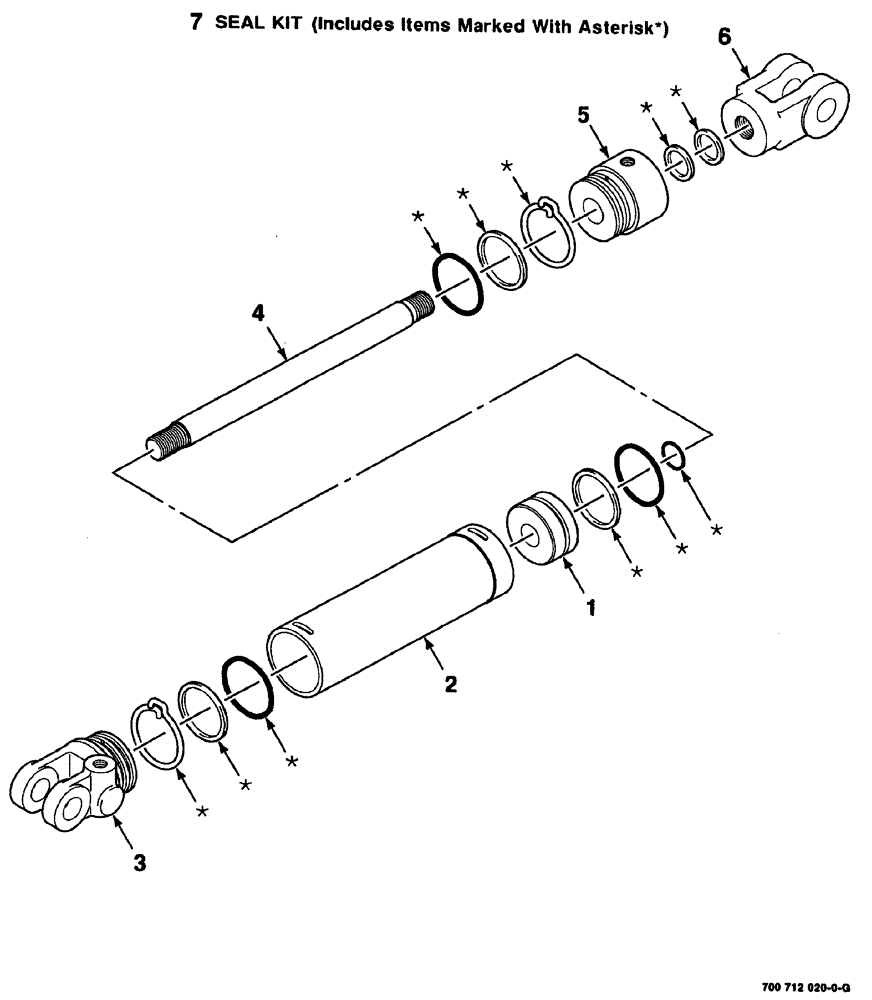

Схема запчастей Case IH 8880 - (08-036) - HYDRAULIC CYLINDER ASSEMBLY - RIGHT (2-3/4 INCH BORE X 8 INCH STROKE) (35) - HYDRAULIC SYSTEMS
3
6
1
5
4
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712020

CYLINDER

HYDRAULIC ASSEMBLY (2-3/4 inch bore x 8 inch stroke)

1шт.

1

700710255

PISTON

cylinder

1шт.

2

700712107

SLEEVE CYLINDER

barrel

1шт.

3

700706175

HEAD

cylinder

1шт.

4

700706178

PISTON ROD

1шт.

5

700712108

LIFT CYLINDER

cylinder rod

1шт.

6

50-2079T1

END

clevis, rod

1шт.

7

700710256

SEAL KIT

seal

1шт.
