Запчасти Case IH 8880 (08-002) - HYDRULIC DRIVE ASSEMBLY - LEFT (35) - HYDRAULIC SYSTEMS

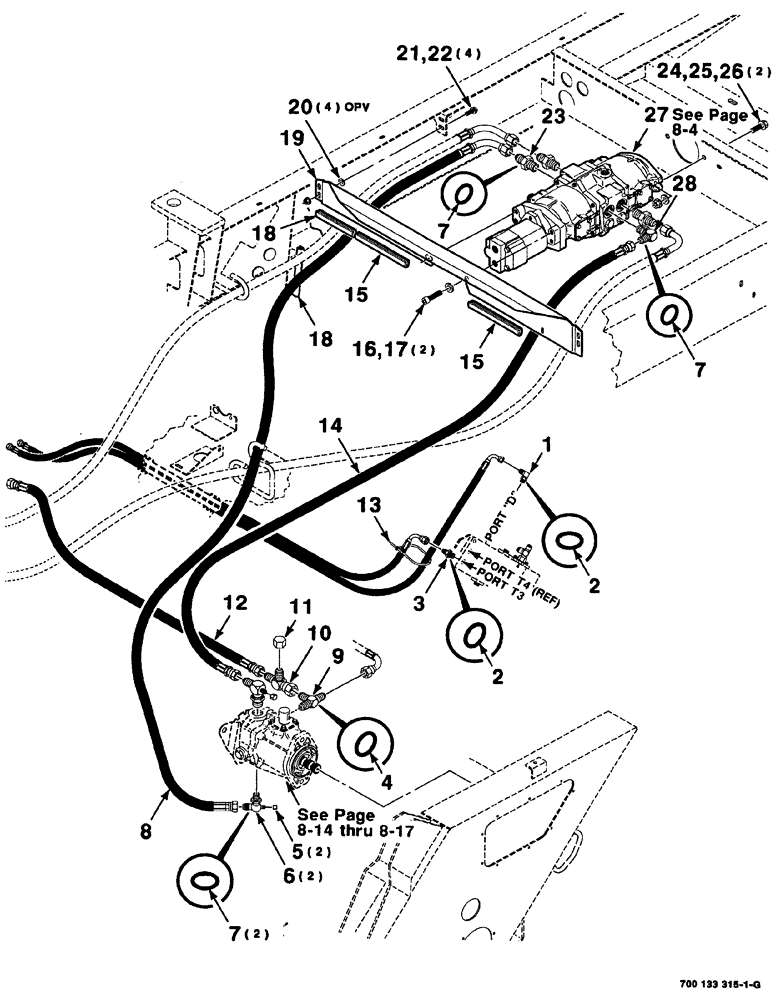

Схема запчастей Case IH 8880 - (08-002) - HYDRULIC DRIVE ASSEMBLY - LEFT (35) - HYDRAULIC SYSTEMS
27
15
21
26
2
2
24
11
8
4
7
22
13
10
23
25
17
15
6
16
1
18
3
28
20
5
12
7
19
14
9
18
7

Артикул

Название

Примечание

Количество

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref. 2)

1шт.

2

738468

O-RING

2шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. Ref. 2)

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-754

CAP,37 Degree, 9/16"-18

2шт.

6

700717997

FITTING

special, (Includes Ref. 7)

2шт.

7

738476

O-RING

4шт.

8

700715454

HOSE

hydraulic

1шт.

9

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

tee, (Includes Ref.4)

1шт.

10

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

fitting, adapter

1шт.

11

218-756

CAP,37 Degree, 7/8"-14

1шт.

12

700715452

HOSE

hydraulic

1шт.

13

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

1шт.

14

700706791

HOSE

hydraulic

1шт.

15

6511695

GROMMET

2шт.

16

61-35024

HEX SOC SCREW,1/2"-13 x 1 1/2"

special, 1/2-13 x 1-1/2, HSHCS

2шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

18

700715944

SEAL

TRIM push on

2шт.

19

700150296

SUPPORT

pump

1шт.

20

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

4шт.

21

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

4шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

(Incl. Ref. 7)

1шт.

24

8701237

BOLT

1/2-13 x 1-1/2, HFS, GR 8

2шт.

25

700711557

WASHER

hardened wide plain, 1/2

2шт.

26

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13, HFTLN, GR/G

2шт.

27

700718105

PUMP, HYDRAULIC

TRANSMISSION ASSEMBLY, (S.N. CFH0155001 thru CFH0155391)

1шт.

27

700719771

PUMP, HYDRAULIC

ASSEMBLY, (S.N. CFH0155392 and later)

1шт.

28

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

(Incl. Ref. 7)

1шт.

Выбрано товаров: 29
