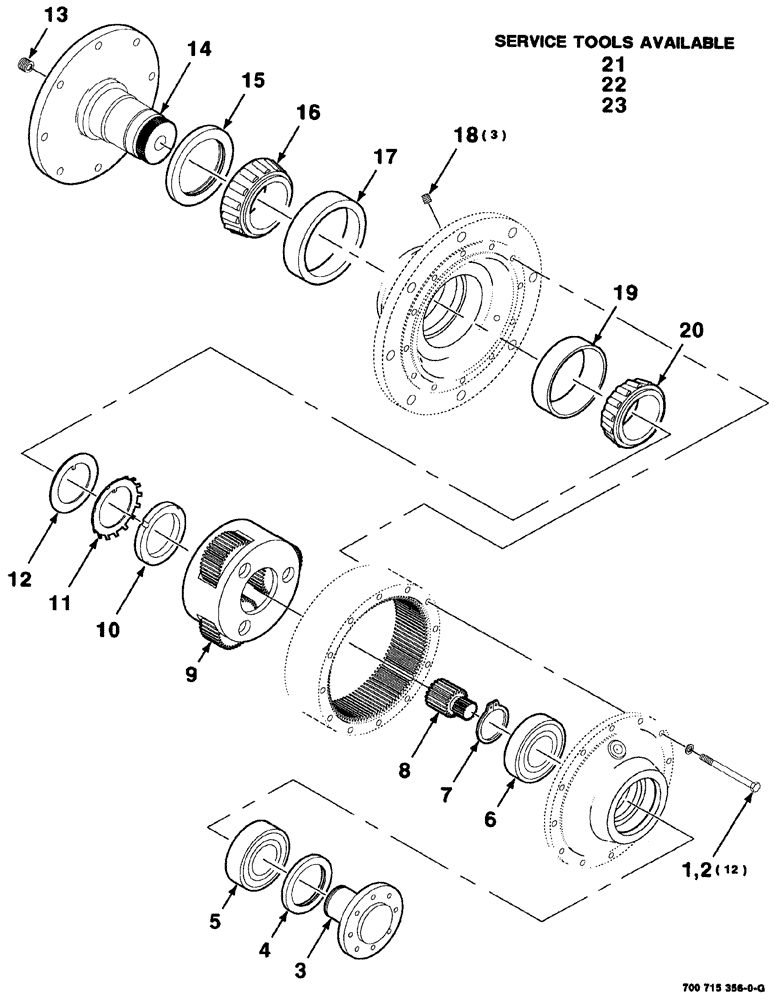

Запчасти Case IH 8880 (06-006) - PLANETARY GEAR ASSEMBLY (14) - MAIN GEARBOX & DRIVE

700715356

GEAR

PLANETARY ASSEMBLY

1шт.

1

700717100

BOLT

3/8-16 x 4-1/2, C

12шт.

2

700717101

WASHER

flat

12шт.

3

700716990

SHAFT

input

1шт.

4

700716986

SEAL

oil

1шт.

5

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

cylindrical

1шт.

6

700716988

BEARING

cylindrical

1шт.

7

700716989

RING

retaining, external

1шт.

8

700716979

GEAR

sun

1шт.

9

700716981

CARRIER ASSY.

1шт.

10

700716978

NUT

lock

1шт.

11

700715785

WASHER

lock

1шт.

12

700716980

WASHER

thrust

1шт.

13

700715782

PLUG

magnetic

1шт.

14

700725031

SHORT SHAFT

output

1шт.

15

700715781

SEAL

oil

1шт.

16

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

17

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

18

700715786

PLUG

magnetic

3шт.

19

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

cup

1шт.

20

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

cone

1шт.

21

700716982

TOOL

bearing, locknut

1шт.

22

700716983

TOOL

DRIVER bearing cone

1шт.

23

700716984

TOOL

spindle, shaft drive

1шт.
