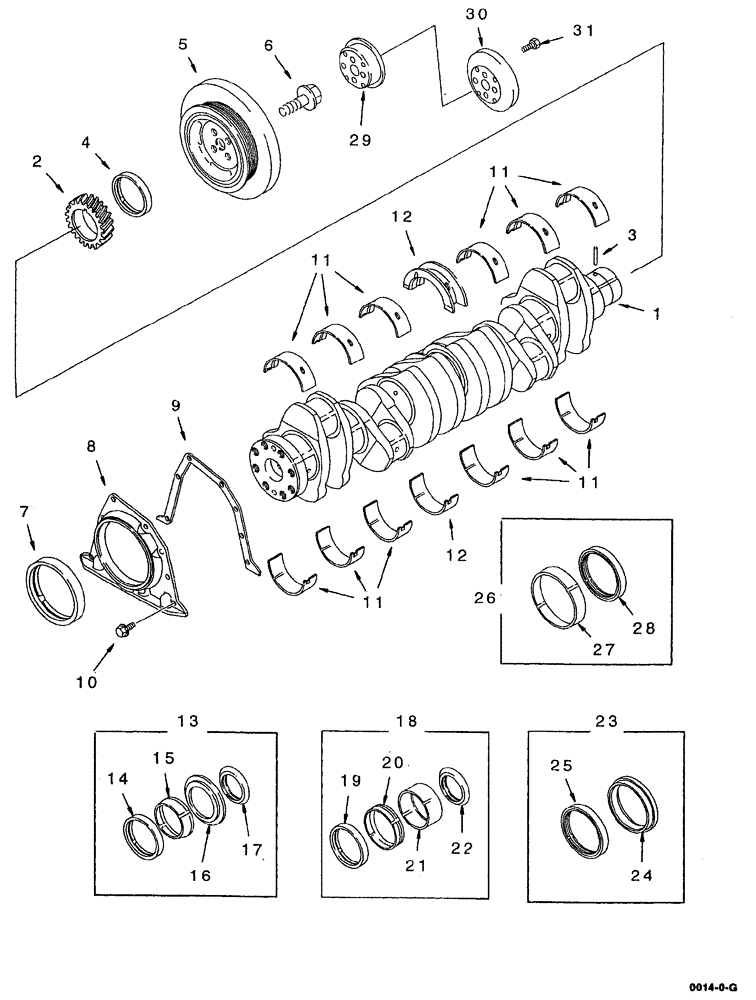

Запчасти Case IH 8880 (10-032) - CRANKSHAFT - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE

JR908032

REMAN-CRANKSHAFT

ASSEMBLY, engine, North America only, component parts shown on this Fig. do not apply to the remanufactured assembly, for service order J908032, Ref. 1

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft core for credit when using a remanufactured assembly

1шт.

1

J908032

CRANKSHAFT

ASSEMBLY, engine

1шт.

2

J929027

PINION

GEAR crankshaft

4шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 13, A77889 kit

1шт.

5

J914454

DAMPER

PULLEY crankshaft vibration

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft rear, order Ref. 19, kit

1шт.

8

J936260

REAR COVER

retainer seal, rear cover, replaces J921043

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

10

J928493

GASKET

rear cover retainer

1шт.

11

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard

6шт.

11

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

6шт.

11

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

6шт.

11

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

6шт.

11

A77478

BEARING SET

main, upper and lower set, 1.00 mm undersize

6шт.

12

A77896

BEARING SET

main, upper and lower set, standard

1шт.

12

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

1шт.

12

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust

1шт.

12

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm, undersize, 1.00 mm oversize thrust

1шт.

13

A77889

SEAL PACKAGE

KIT oil seal, crankshaft front

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

18

A77890

SEAL PACKAGE

KIT oil seal, crankshaft front, includes wear sleeve

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

23

J934486

SERVICE KIT

KIT oil seal, crankshaft rear, replaces J353978

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

A77810

SERVICE KIT

KIT oil seal, crankshaft rear, includes wear sleeve

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

29

J903829

ADAPTER

FLANGE, pulley

1шт.

30

J903783

ADAPTER

crankshaft

1шт.

31

326-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

4шт.
