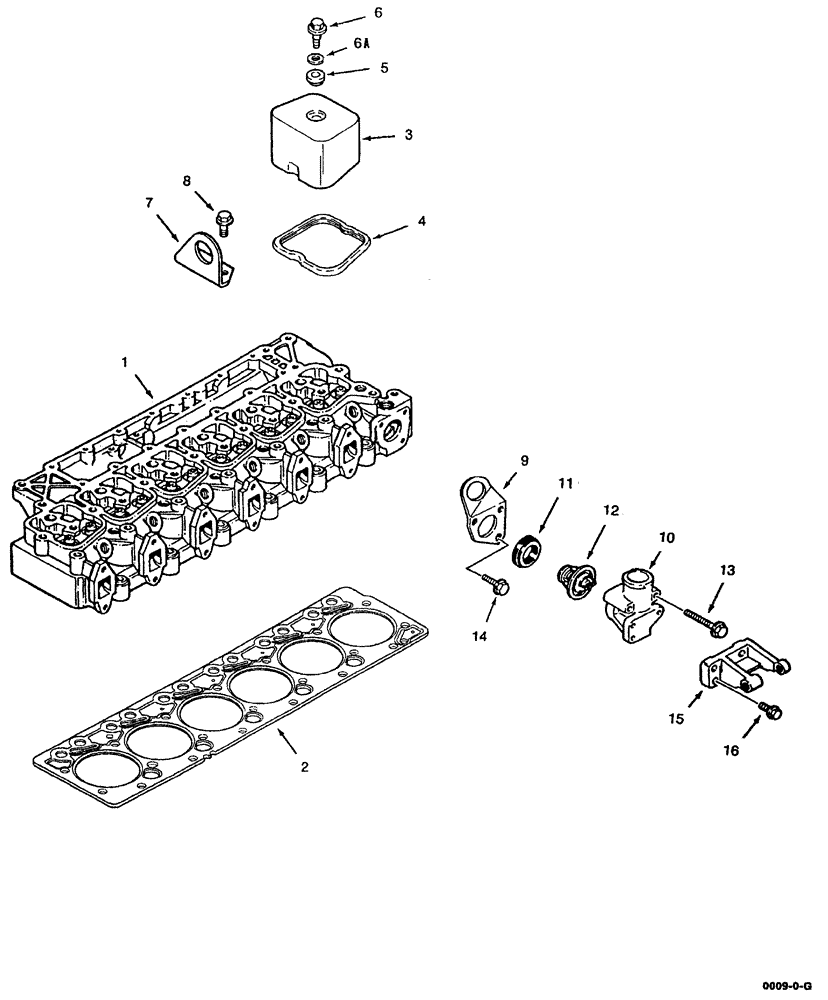

Запчасти Case IH 8880 (10-022) - CYLINDER HEAD COVERS, THERMOSTAT AND HOUSING - 6T-590 EMISSIONS CERTIFIED ENGINE (10) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, see Fig. 10-24 for correct cylinder head and parts list

1шт.

2

J283335

GASKET,2.32mm Thk

head, standard, cylinder head covers

1шт.

2

J283337

GASKET,2.24mm Thk

head, 1 notch, 0.25 mm thicker, cylinder head covers

1шт.

2

J283339

GASKET

head, 2 notches, 0.50 mm thicker, cylinder head covers

1шт.

3

J928404

COVER

rocker arm, cylinder head covers

6шт.

4

J930906

GASKET

SEAL rocker arm cover, cylinder head covers

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, replaces J928406, cylinder head covers

6шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm, cylinder head covers

6шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Not used in this application, cylinder head covers

6шт.

7

J908118

BRACKET

lifting, rear, cylinder head covers

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

BOLT heavy hex flange, 12 - 1.75 x 30 mm, class 10.9, cylinder head covers

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat and housing

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, replaces A77920, and housing

1шт.

11

J923331

GASKET

thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, thermostat and housing

1шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Thermostat and Housing

3шт.
