(09-004) - DECALS AND LOCATION DIAGRAM (8880HP)

Запчасти Case IH 8880 (09-004) - DECALS AND LOCATION DIAGRAM (8880HP) (90) - PLATFORM, CAB, BODYWORK AND DECALS

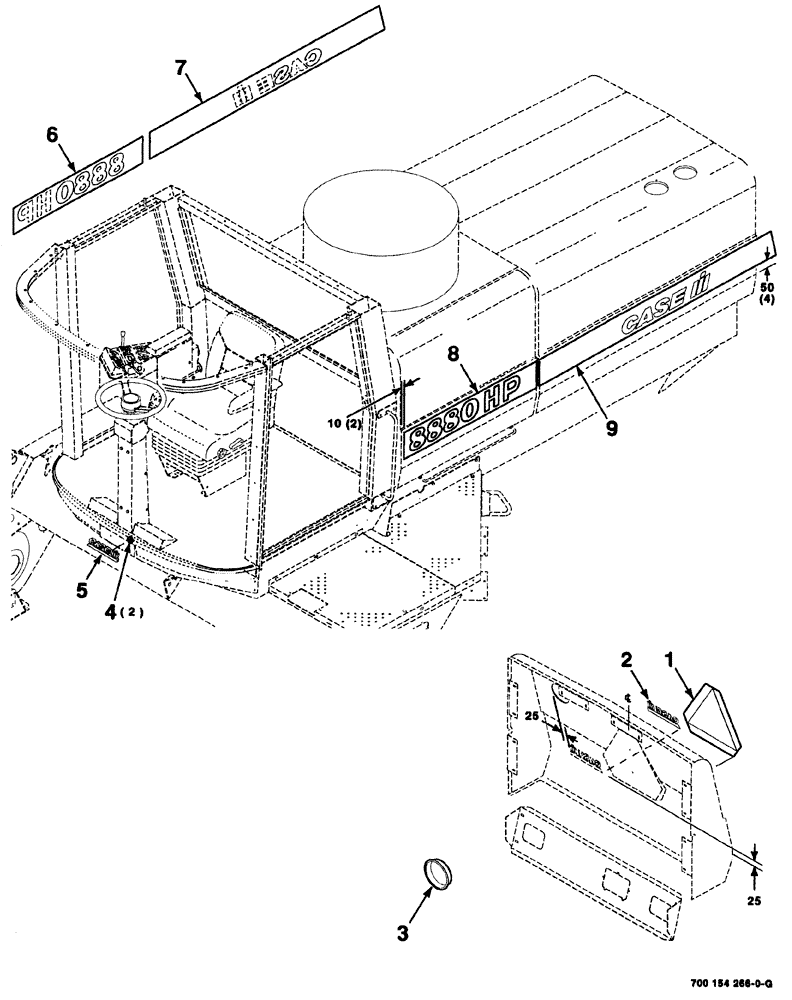

Схема запчастей Case IH 8880 - (09-004) - DECALS AND LOCATION DIAGRAM (8880HP) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
8
9
2
1
4
6
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

311858A1

DECAL

EMBLEM slow vehicle

1шт.

2

192848A2

DECAL

CASE IH

1шт.

3

700710275

PLUG

plastic

1шт.

4

1324788C1

NUT

self threading

2шт.

5

186882A1

EMBLEM CASE/IH

MEDALLION

1шт.

6

700726198

DECAL

front, right

1шт.

7

700715917

DECAL

rear, right

1шт.

8

700726197

DECAL

front, left

1шт.

9

700715915

DECAL

rear, left

1шт.
