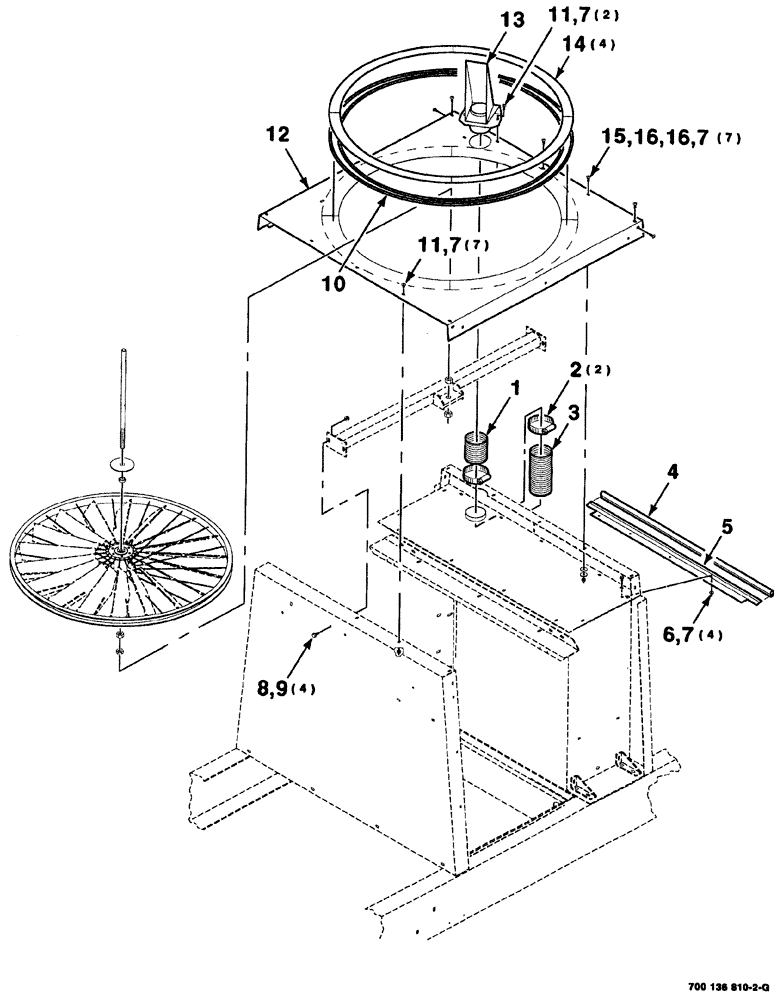

Запчасти Case IH 8880 (07-072) - ROTARY SCREEN ASSEMBLY (8880) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700715495

HOSE

air, ducting

1шт.

2

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

hose

2шт.

3

700709868

HOSE

air, ducting

1шт.

4

700715488

SEAL

trim

1шт.

5

700136869

SUPPORT

seal

1шт.

6

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

7

1703354

NUT

1/4-20, HFTLN, GR/G

20шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

4шт.

10

700715494

TAPE

transfer (36 yard bulk length)

1шт.

11

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

GR60M

9шт.

12

700136868

PANEL

top (S.N. CFH0155001 thru CFH0155349)

1шт.

12

700152379

PANEL

top (S.N. CFH0155350 and later)

1шт.

13

700134267

HOUSING

WA

1шт.

14

700716181

RING

STEEL stainless

4шт.

15

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 60, M

7шт.

16

700716408

RUBBER WASHER

rubber

14шт.
