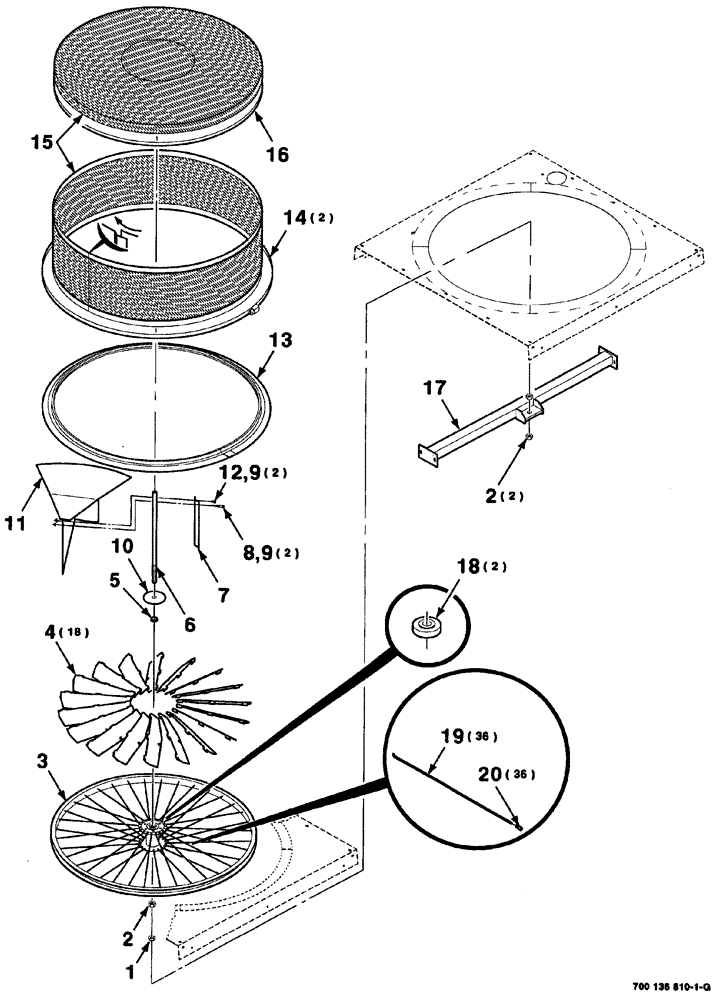

Запчасти Case IH 8880 (07-068) - ROTARY SCREEN ASSEMBLY (8880) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

2

425-1110

NUT,5/8"-18, G5

3шт.

3

700715496

SCREEN

WHEEL ASSEMBLY (Includes Refs. 18, 19 and 20)

1шт.

4

700134279

FIN

18шт.

5

700118822

SPACER

1шт.

6

700134278

SHAFT

1шт.

7

700134277

SUPPORT

1шт.

9

1703354

NUT

1/4-20, HFTLN, GR/G

4шт.

10

700133444

WASHER

special

1шт.

11

700134274

BAFFLE

WA

1шт.

12

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

13

700715493

SEAL

rotary screen

1шт.

14

700715492

CLAMP

hose

2шт.

15

700150939

SCREEN

wrapper

1шт.

16

700715489

TAPE

double sided, (36 yard bulk length)

1шт.

17

700134260

BEAM

WA

1шт.

18

700717598

BALL BEARING,15.88mm ID x 34.92mm OD x 11mm W

2шт.

19

700717596

SPOKE

36шт.

20

700717597

NIPPLE, LUBE

NIPPLE

36шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
