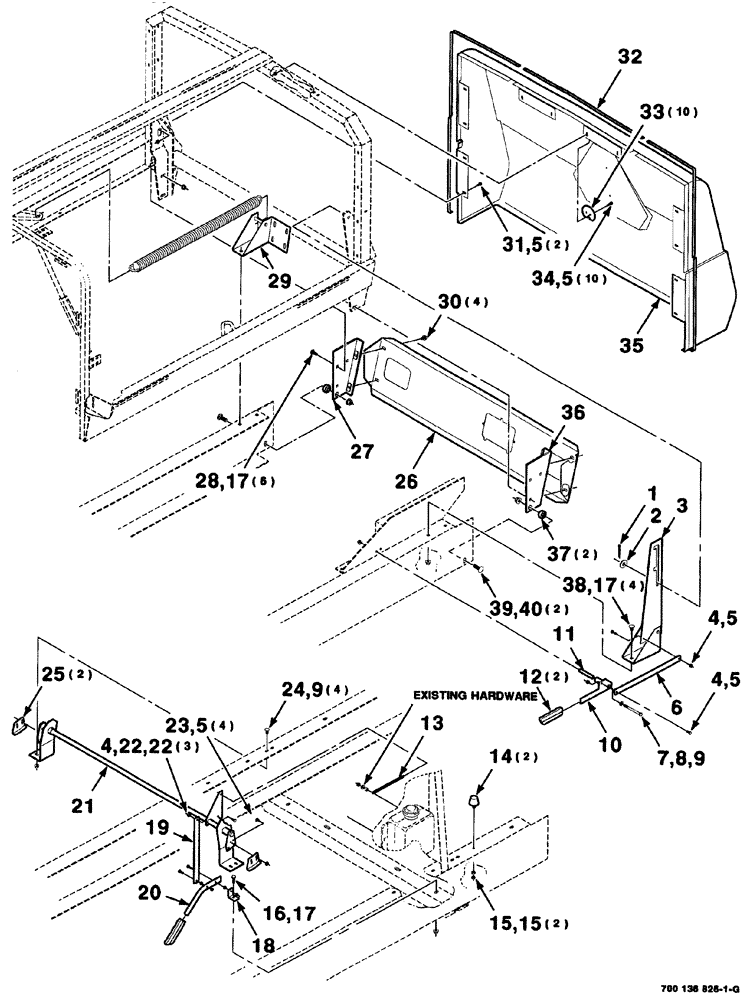

Запчасти Case IH 8880 (07-060) - HOOD MOUNTING ASSEMBLY - REAR (8880) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

432-816

COTTER PIN,1/8" x 1"

1шт.

2

495-21056

WASHER,1/2"

wide plain, 1/2

1шт.

3

700134173

CHANNEL

WA, left

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

5

1703354

NUT

1/4-20, HFTLN, GR/G

18шт.

6

700136885

LINK

1шт.

7

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16-18 x 3-1/2

1шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

5шт.

10

700134229

HANDLE

WA

1шт.

11

700134228

TUBE,12.7 mm OD, 73 mm Length

1шт.

12

700715485

HANDLE

cover

2шт.

13

700709637

SPRING

extension

1шт.

14

827568

BUMPER

rubber

2шт.

15

425-115

NUT,5/16"-24, G5

4шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

11шт.

18

700134226

ANGLE

1шт.

19

700134232

LINK

1шт.

20

700134225

HANDLE

1шт.

21

700136882

SHAFT

WA

1шт.

22

425-104

NUT,1/4"-20, Cl 5

6шт.

23

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4, RHSNB

4шт.

25

700134218

CAM

plate

2шт.

24

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

26

700134172

PANEL

end

1шт.

27

700134182

SUPPORT

WA, right

1шт.

28

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

29

700134174

CHANNEL

WA, right

1шт.

30

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 x 1/2, HWHMS

4шт.

31

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

32

700715484

TAPE

UHMW, polyethylene, (18 yard bulk length)

1шт.

33

700134233

WASHER

CAM

10шт.

34

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4, HWHMS

10шт.

35

700715480

COVER

rear

1шт.

36

700134181

SUPPORT

WA, left

1шт.

37

700134227

BUSHING

2шт.

38

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

39

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

40

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13, HFTLN, GR/G

2шт.
