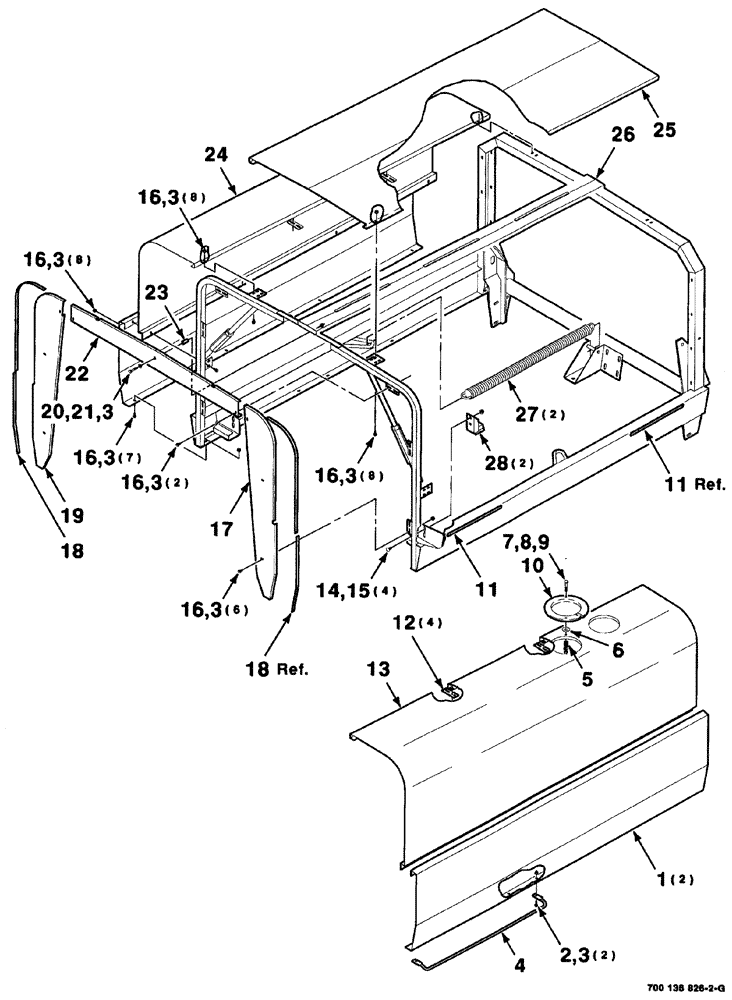

Запчасти Case IH 8880 (07-058) - HOOD ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700134180

PANEL

lower

2шт.

2

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4, HWHMS

2шт.

3

1703354

NUT

1/4-20, HFTLN, GR/G

42шт.

4

700134234

HANDLE

1шт.

5

CAS758342

SPRING

compression

1шт.

6

700709866

WASHER

1шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

9

230-4115

LOCK NUT,5/16"-18, GA

5/16-18, HTLN, GR/B

1шт.

10

487777

COVER

1шт.

11

700715483

TAPE

single sided, (36 yard bulk length)

1шт.

12

700134207

PLATE

4шт.

13

700134169

PANEL

upper, left

1шт.

14

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

4шт.

16

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

39шт.

17

700134216

PANEL

left

1шт.

18

700715481

TAPE

single sided, (36 yard bulk length)

1шт.

19

700134217

PANEL

right

1шт.

20

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

21

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

1шт.

22

700134215

ANGLE

seal

1шт.

23

700134214

TUBE

spacer

1шт.

24

700134170

PANEL

upper, right

1шт.

25

700134168

PANEL

upper, center

1шт.

26

700134185

FRAME

WA

1шт.

27

700716240

SPRING

extension

2шт.

28

700134210

CHANNEL

WA, guide

2шт.
