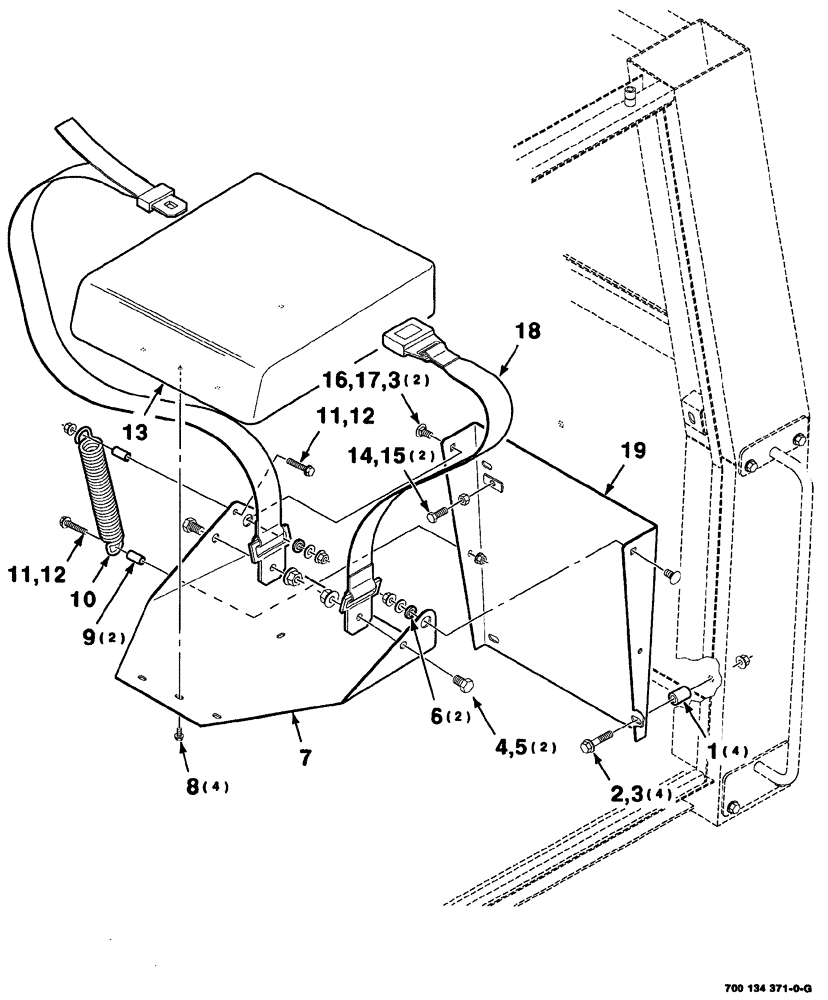

Запчасти Case IH 8880 (07-036) - AUXILIARY SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

147306

BUSHING

SPACER

4шт.

2

700711134

SCREW

3/8-16 x 1-3/4, HFS, GR 8

4шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

6шт.

4

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4, C

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13, HFTLN, GR/G

2шт.

6

700134370

BUSHING

2шт.

7

700134367

SUPPORT

channel

1шт.

8

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

9

190123C1

SPACER,1/2" Tube x 1"

2шт.

10

700713654

SPRING

extension

1шт.

11

163-56

SCREW,Hex Wshr Hd, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 x 1-1/2, HWHMS

2шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

2шт.

13

304474A1

CUSHION

ASSEMBLY

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

17

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

2шт.

18

741033

SAFETY BELT

SEAT ASSEMBLY

1шт.

19

700134368

CHANNEL

WA

1шт.
