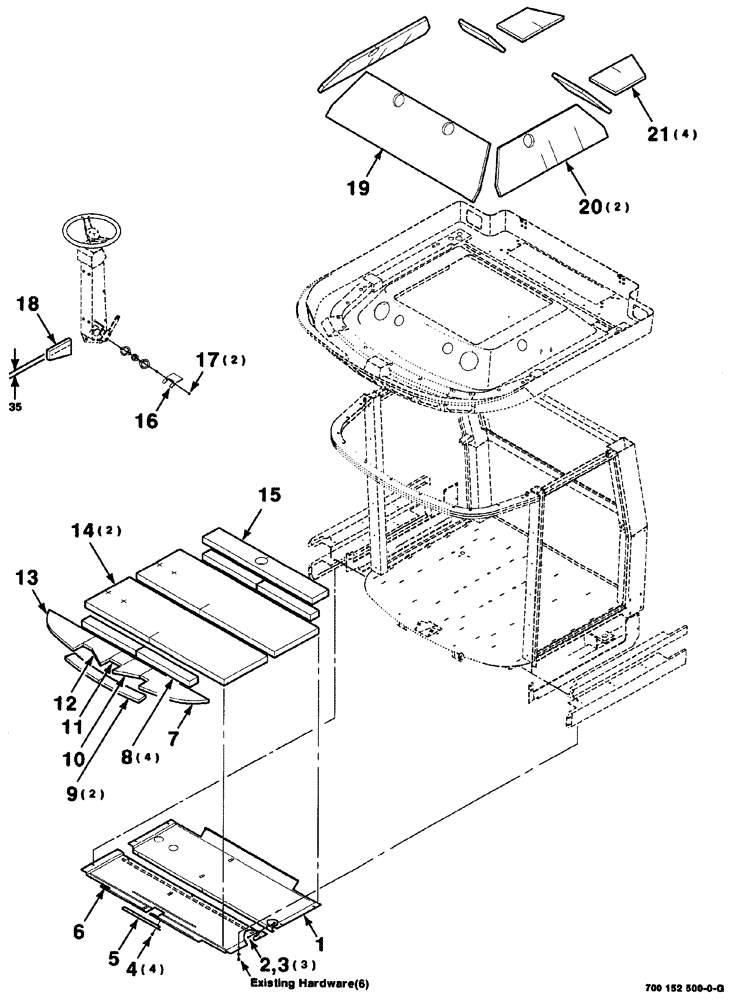

Запчасти Case IH 8880 (07-034) - INSULATION ASSEMBLY (S.N. CFH0155300 AND LATER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700152503

PLATE

WA, rear

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

5

700152506

ANGLE

1шт.

6

700152501

PLATE

WA, front

1шт.

7

700719319

FOAM

left

1шт.

8

700719321

FOAM

channel

4шт.

9

700719320

FOAM

front

2шт.

10

700719318

FOAM

left, CTR

1шт.

11

700719317

FOAM

CTR

1шт.

12

700719316

FOAM

right, CTR

1шт.

13

700719315

FOAM

right

1шт.

14

700719306

FOAM

2шт.

15

700719314

FOAM

rear

1шт.

16

700719322

PLASTIC

retainer, foam

1шт.

17

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

2шт.

18

700719418

FOAM

1шт.

19

700719311

FOAM

front, cab top

1шт.

20

700719312

FOAM

side, cab top

2шт.

21

700719313

FOAM

rear, cab top

4шт.
