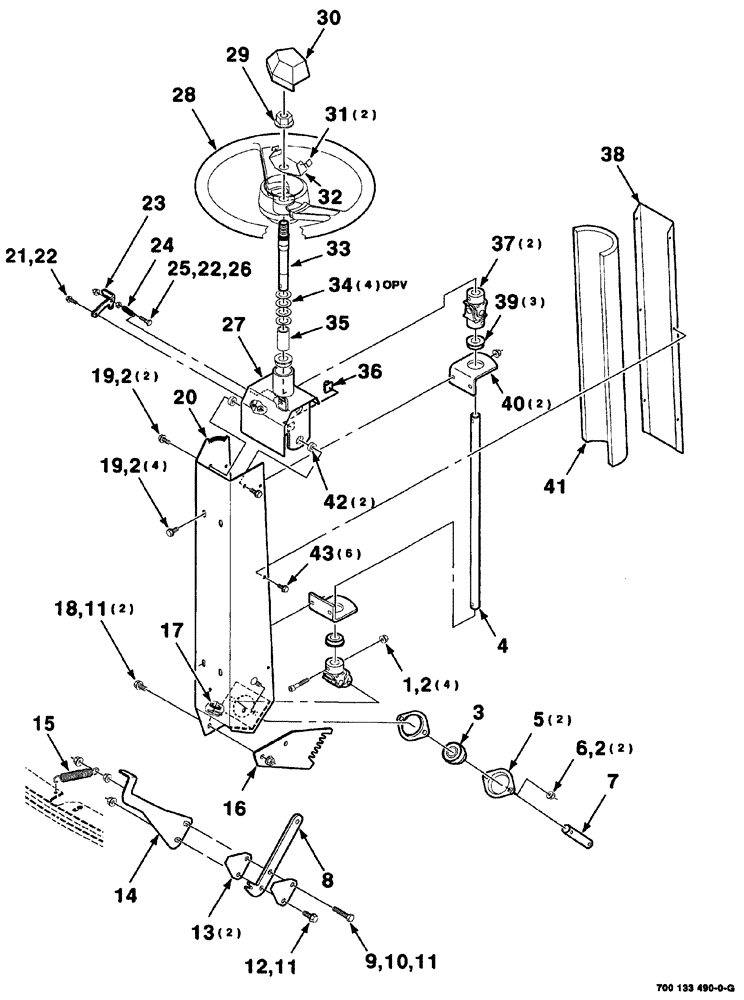

Запчасти Case IH 8880 (07-028) - STEERING COLUMN ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

7701667

HEX SOC SCREW,5/16" - 18 x 1 3/4"

5/16-18 x 1-3/4, HSHCS, special

4шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

12шт.

3

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

spherical

1шт.

4

700133506

SHAFT

1шт.

5

469924R1

FLANGE

2шт.

6

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 x 1-1/4, RHSNB

2шт.

7

700133507

SHAFT

1шт.

8

700133494

LINK

adjustment

1шт.

9

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

4шт.

12

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

13

700133502

PLATE

retaining

2шт.

14

700133495

PEDAL

POST steering

1шт.

15

NLS

NO LONGER SERVICED

extension

1шт.

16

700133493

PLATE

lower

1шт.

17

7027360

GROMMET

1шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

19

700718696

SCREW

5/16-18 x 3/4, HWHMS, black

6шт.

20

700133492

CHANNEL

POST steering

1шт.

21

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 x 1, HWHMS

1шт.

22

425-104

NUT,1/4"-20, Cl 5

2шт.

23

700133497

LINK

adjustment

1шт.

24

7758022

SPRING

extension

1шт.

25

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1, C

1шт.

26

1703354

NUT

1/4-20, HFTLN, GR/G

1шт.

27

700133498

CHANNEL

WA, upper

1шт.

28

700715315

WHEEL

steering

1шт.

29

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

1шт.

30

700715316

COVER

WHEEL steering

1шт.

31

700715310

BUTTON

velcro

2шт.

32

700133509

SUPPORT

cover

1шт.

33

700133503

SHAFT

1шт.

34

52183

BUSHING

3/4 x 18, gauge, NRMB

4шт.

35

700134079

SPACER

1шт.

36

700717762

CLAMP

WIRE

1шт.

37

700705553

UNIVERSAL JOINT

2шт.

38

700133505

COVER

1шт.

39

700705557

BUSHING

3шт.

40

700133491

ANGLE

2шт.

41

700715321

PAD

foam

1шт.

42

700715317

WASHER

BUSHING

2шт.

43

700718697

SCREW

1/4-20 x 1/2, HWHTCTS, black

6шт.
