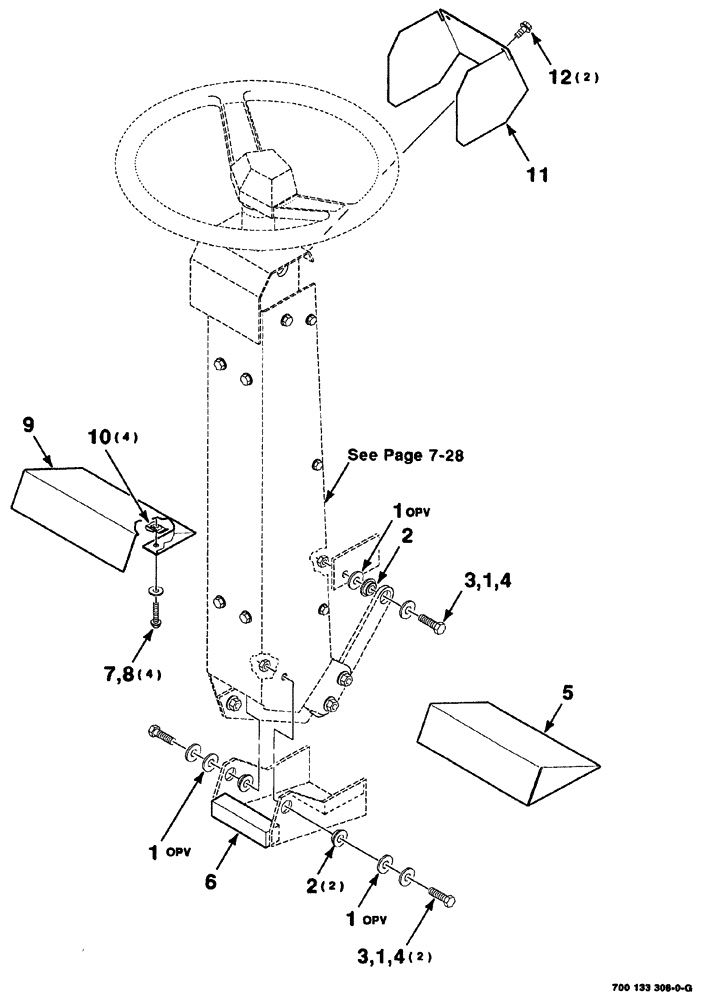

Запчасти Case IH 8880 (07-026) - STEERING COLUMN SHIELDS AND MOUNTING ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

496-81010

WASHER

hardened wide plain, 3/8

6шт.

2

700705555

BUSHING

3шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

700133510

SUPPORT

left

1шт.

6

700715319

PAD

foam

1шт.

7

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

1/4-20 x 1-1/4, HWHMS

4шт.

8

495-21031

WASHER,1/4"

4шт.

9

700133511

SUPPORT

right

1шт.

10

74740

NUT

speed

4шт.

11

700133508

COVER

POST steering

1шт.

12

700718697

SCREW

1/4-20 x 1/2, HWHTCTS, BF

2шт.
