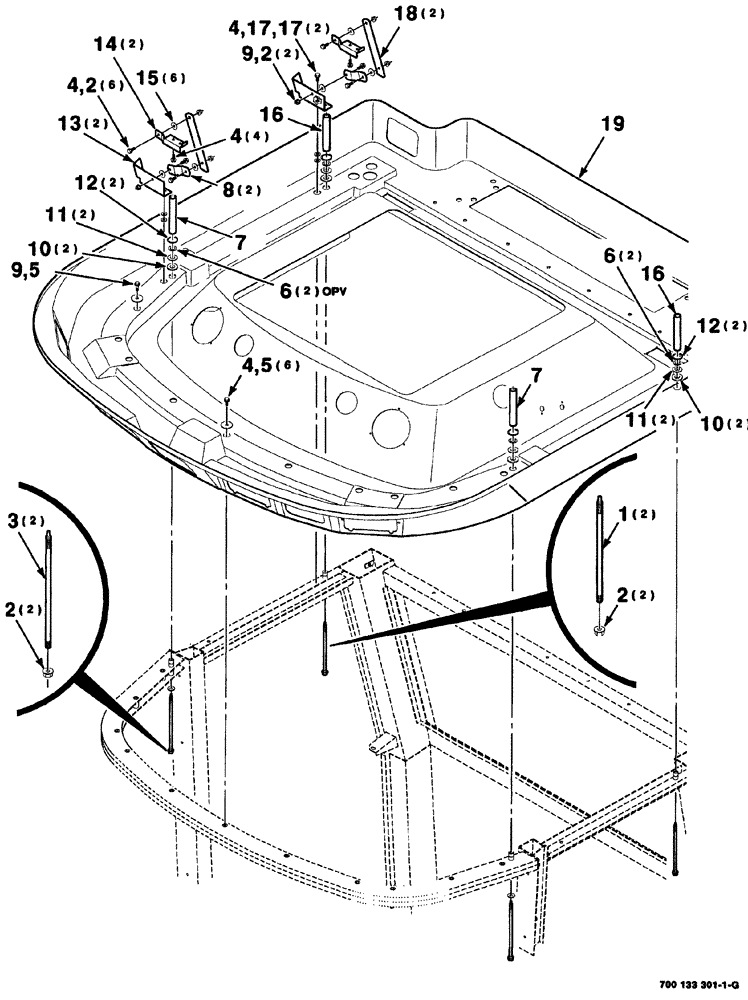

Запчасти Case IH 8880 (07-024) - HEADLINER AND HINGE ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700133412

ROD

2шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

12шт.

3

700133415

ROD

2шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

18шт.

5

700710049

WASHER

fender, 3/8

7шт.

6

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 x 18, gauge, NRMB

4шт.

7

700133409

SPACER

TUBE

2шт.

8

700133402

ARM

pivot

2шт.

9

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1, HWHMS

3шт.

10

700715242

BUSHING

4шт.

11

495-11066

WASHER,5/8", SAE

5/8 x 14 gauge, WRMB

4шт.

12

103-1162

SNAP RING,#62, Ext

4шт.

13

700133401

SUPPORT

lower

2шт.

14

700133403

SUPPORT

2шт.

15

7825425

WASHER

FIBER

6шт.

16

700133416

ROD

TUBE spacer

2шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

18

700133407

ARM

stop

2шт.

19

700719157

ROOF LINING

HEADLINER ASSEMBLY

1шт.
