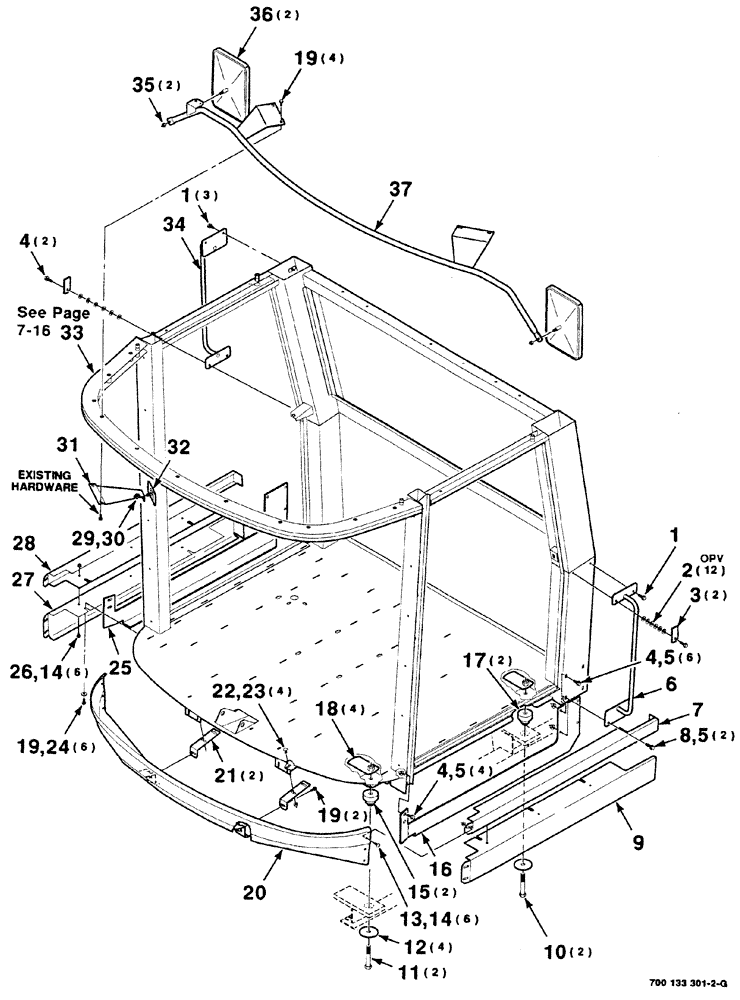

Запчасти Case IH 8880 (07-014) - CAB FRAME, MIRROR AND SHIELD ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 x 1/2, HWHMS

4шт.

2

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

12шт.

3

700716710

CLIP

door restraint

2шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

12шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

12шт.

6

700133417

HANDLE

WA

1шт.

7

700133388

SHIELD

left

1шт.

8

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4, HFS, GR 8

2шт.

9

700133391

SHIELD

left

1шт.

10

700152718

BOLT

special

2шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

5/8-11 x 4

2шт.

12

NLS

NO LONGER SERVICED

4шт.

13

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 x 3/4, CRPHMS, GR 60, M

6шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

15

A141451

SHOCK ABSORBER

MOUNT cab, front

2шт.

16

700150850

SUPPORT

cab, left

1шт.

17

700716101

RUBBER SLEEVE

MOUNT cab, rear

2шт.

18

700133424

PLATE

WA

4шт.

19

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

20

700715231

SHIELD

ASM front, lower

1шт.

21

700133393

SUPPORT

shield

2шт.

22

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

23

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

4шт.

24

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

6шт.

25

700150851

SUPPORT

cab, right

1шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

27

700133392

SHIELD

right

1шт.

28

700133390

SHIELD

right

1шт.

29

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

30

425-105

NUT,5/16"-18, G5

1шт.

31

700133410

MOUNTING CLIP

mirror

1шт.

32

A177462

MIRROR

rear view

1шт.

33

700150295

CAB

ASSEMBLY frame and glass, (Includes all Refs. on Fig. 7-15)

1шт.

34

700133422

HANDLE

WA

1шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

1283403C1

MIRROR

ASSEMBLY

2шт.

37

700133394

PIPE

WA, mirror mount

1шт.
