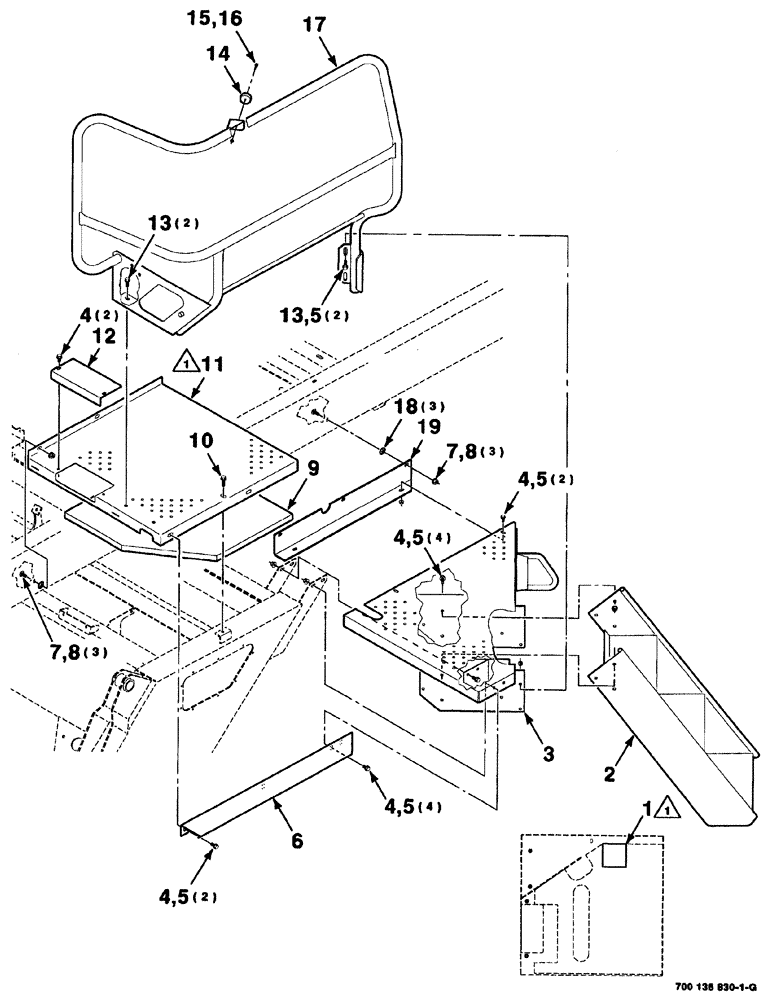

Запчасти Case IH 8880 (07-010) - PLATFORM, HANDRAIL AND STEP ASSEMBLIES - LEFT (8880) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700719317

FOAM

CTR

1шт.

2

700134291

STEP

WA

1шт.

3

700149587

STEP

ASSEMBLY, left, (Includes Decal)

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

14шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR IG

14шт.

6

700134303

EXTENSION

platform

1шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

6шт.

9

700715478

PAD

foam, (S.N. CFH0155001 thru CFH0155299)

1шт.

9

700719307

FOAM

PAD, (S.N. CFH0155300 and Later)

1шт.

10

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4, HFS, GR 8

1шт.

11

700134280

STEP

WA, left

1шт.

12

700134302

ANGLE

COVER

1шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

14

700708648

BUMPER

rubber

1шт.

15

700707203

CAPTIVE WASHER SCREW

#12-24 x 3/4, HWHMS

1шт.

16

1954816C1

LOCK NUT

#12-24 lock, special

1шт.

17

700134294

RAIL

WA

1шт.

18

700711334

FASTENER

push on

3шт.

19

700134335

ANGLE

1шт.
