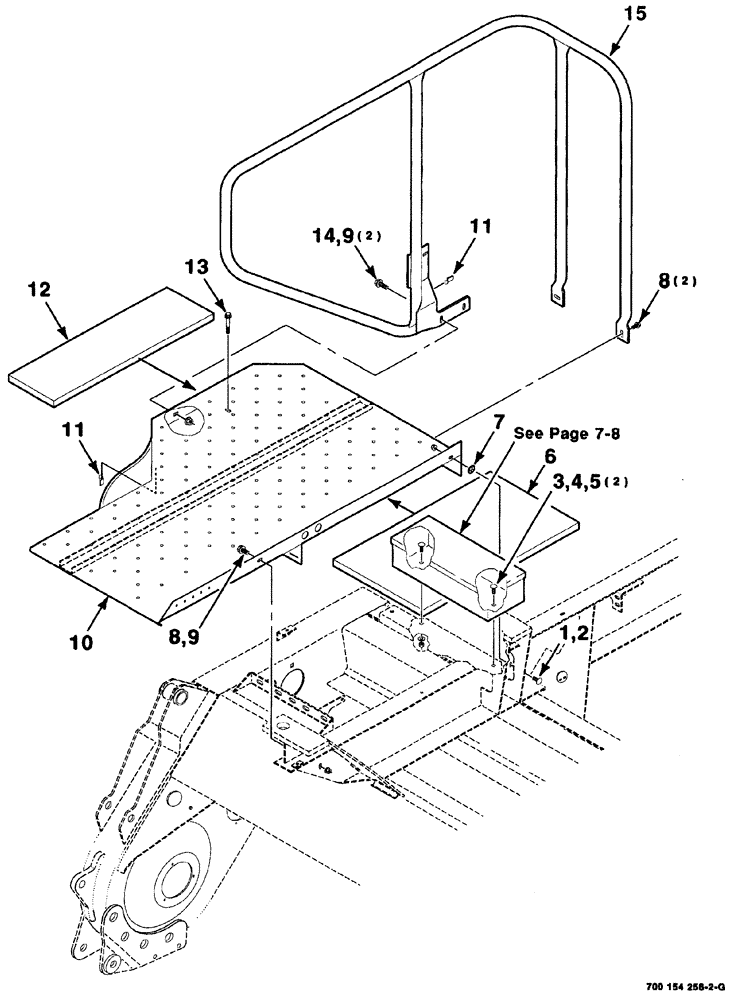

Запчасти Case IH 8880 (07-006) - PLATFORM AND HANDRAIL ASSEMBLIES - RIGHT (8880HP) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

1шт.

3

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

4

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

700719308

FOAM

right

1шт.

7

700711334

FASTENER

push on

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

3шт.

10

700134305

PLATE

PLATFORM WA, right

1шт.

11

41152

CLIP

wire

2шт.

12

700719309

FOAM

right

1шт.

13

7702079

SCREW

3/8-16 x 2-1/2, HFS, GR 8

1шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

15

700154341

PIPE

WA, guard rail, right

1шт.
