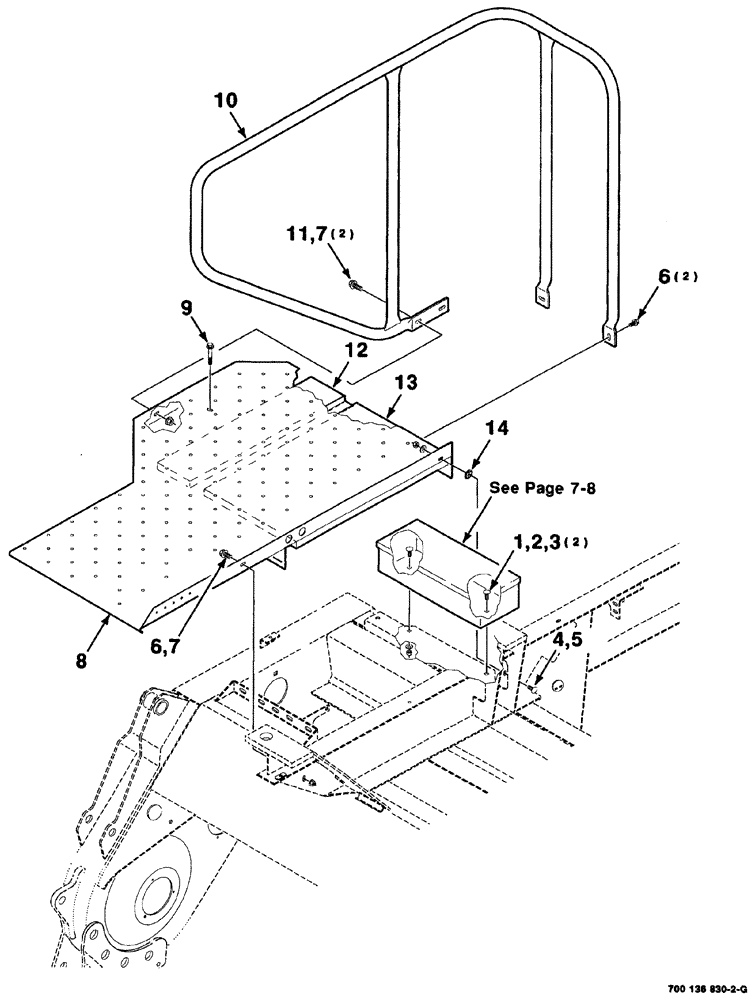

Запчасти Case IH 8880 (07-004) - PLATFORM AND HANDRAIL ASSEMBLIES - RIGHT (8880) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

2

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

5

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

3шт.

8

700134305

PLATE

PLATFORM WA right

1шт.

9

7702079

SCREW

3/8-16 x 2-1/2, HFS, GR 8

1шт.

10

700136905

PIPE

RAIL WA right

1шт.

11

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

12

700715477

PAD

foam, (S.N. CFH0155001 thru CFH0155299)

1шт.

12

700719309

FOAM

PAD, (S.N. CFH0155300 and Later)

1шт.

13

700715479

PAD

foam, (S.N. CFH0155001 thru CFH0155299)

1шт.

13

700719308

FOAM

PAD, (S.N. CFH0155300 and Later)

1шт.

14

700711334

FASTENER

push on

1шт.
