Запчасти Case IH 8880 (04-036) - ENGINE WIRING ASSEMBLY - REAR (8880) (55) - ELECTRICAL SYSTEMS

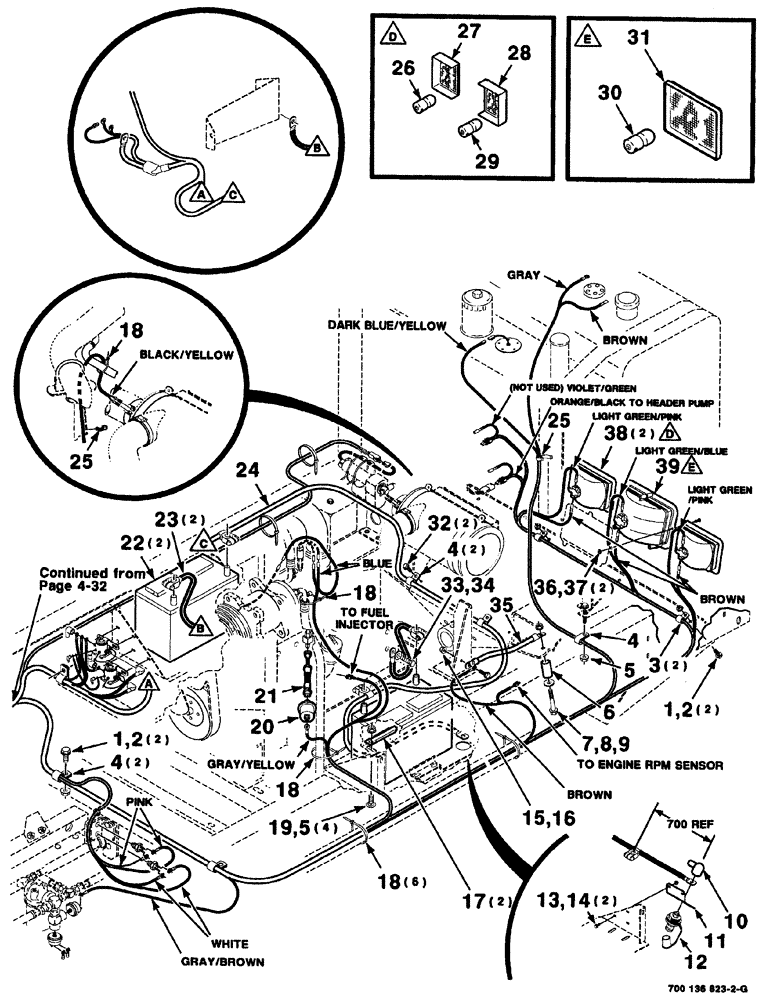

Схема запчастей Case IH 8880 - (04-036) - ENGINE WIRING ASSEMBLY - REAR (8880) (55) - ELECTRICAL SYSTEMS
23
4
36
25
1
9
18
7
13
33
20
27
15
5
25
17
16
18
22
4
19
21
1
2
12
8
38
32
39
14
28
24
5
30
3
34
11
2
31
35
37
10
26
29
6
18
4
18

Артикул

Название

Примечание

Количество

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line

2шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

5шт.

5

231-5146

FLANGE NUT,3/8"-16

5шт.

6

700133541

SPACER

plated

1шт.

7

7702079

SCREW

3/8-16 x 2-1/2, HFS, GR 8

1шт.

8

496-81010

WASHER

hardened wide plain, 3/8

1шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

1шт.

10

700707065

SHIELD

term, electrical

1шт.

11

700152444

BRACKET

jumper post

1шт.

12

700715463

STUD

jumper

1шт.

13

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

15

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1, HWHMS

1шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

1шт.

17

6827695

CLAMP BRACKET

holddown

2шт.

18

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

9шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

20

1341329C1

TRANSMITTER

SENDER oil pressure

1шт.

21

700715360

HOSE

hydraulic

1шт.

22

B24F72W

WET BATTERY

24, 12 VOLT, 600 AMP

2шт.

23

700715465

CABLE

battery

2шт.

24

700715464

CABLE

battery

1шт.

25

7745193

CLIP

wire

2шт.

26

700717381

BULB

7528 - P21/5W - 12V

1шт.

27

700717386

LENS

red

1шт.

28

700717417

LENS

amber

1шт.

29

700717385

BULB

7506 - P21W/12V

1шт.

30

137828A1

BULB

rear light

1шт.

31

700717427

LENS

rear light

1шт.

32

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 x 3/4, HWHTCTS

2шт.

33

7771843

SCREW

M12 x 1.75 x 16, C

1шт.

34

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

35

722868

CABLE

WIRE electrical

1шт.

36

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 x 1/2, CRPHMS, GR 60, M

2шт.

37

225-14110

NUT,#10-24

2шт.

38

700715461

LIGHT

tail, (Includes Refs. 26, 27, 28 and 29)

2шт.

39

700715247

LIGHT

head with BEZEL (Includes Refs. 30 and 31)

1шт.

Выбрано товаров: 39
