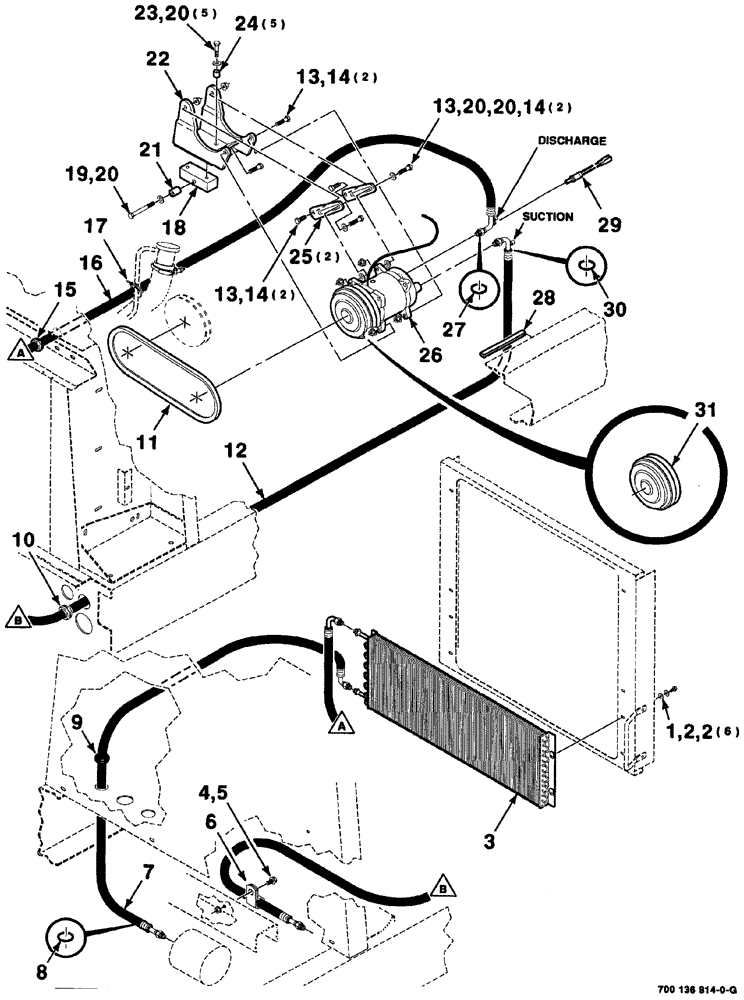

Запчасти Case IH 8880 (07-044) - CONDENSER AND COMPRESSOR MOUNTING ASSEMBLIES (50) - CAB CLIMATE CONTROL
№
Артикул
Название
Примечание
Количество
1
121-3
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
6шт.
2
496-11028
WASHER,9/32" x 5/8" x .065, HDN
hardened plain, 1/4
12шт.
3
700713364
CONDENSER
1шт.
4
409-7612
BOLT,3/8"-16 x 1.09" OAL
1шт.
5
231-5146
FLANGE NUT,3/8"-16
1шт.
6
515-23254
CLAMP,1", Insul, 3/8" Bolt
1шт.
7
700715456
HOSE
ASSEMBLY (Includes Ref. 8)
1шт.
8
700712717
O-RING
1шт.
10
248-21114
GROMMET,1 1/2" ID x 1 3/4" Groove Dia
1шт.
11
700715387
V-BELT,1016 mm L
1шт.
12
700715457
HOSE
ASSEMBLY (Includes Ref. 30)
1шт.
13
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
6шт.
14
700711876
LOCK NUT
M10 x 1.5, HFTLN
6шт.
15
248-2152
GROMMET,1" ID x 1 3/8" Groove Dia
1шт.
16
700715455
HOSE
ASSEMBLY (Includes Ref. 27)
1шт.
17
306132C1
CABLE TIE,14.5" L
CABLE STRAP tie, nylon
1шт.
18
700133962
BLOCK
support
1шт.
19
700715074
BOLT
M10 x 1.5 x 80, C, 10.9, BF
1шт.
20
496-11028
WASHER,9/32" x 5/8" x .065, HDN
hardened plain, 3/8
10шт.
21
6176002
SPACER
1шт.
22
700130891
SUPPORT
WA, compressor
1шт.
23
700715073
BOLT
M10 x 1.5 x 40, C, 10.9, BF
5шт.
24
6856512
SPACER
5шт.
25
700133956
STRAP
adjustment
2шт.
26
1999755C3
COMPRESSOR
ASSEMBLY COMPLETE (Includes Ref. 31)
1шт.
26
86993462R
REMAN-COMPRESSOR
8880, 8880HP; Reman For New P/N 1999755C3
1шт.
26
86993462C
CORE-COMPRESSOR
Return Part Number
1шт.
26
48017123R
REMAN-A/C COMP KIT
Reman A/C Compressor Kit
1шт.
26
48017123C
REMAN-A/C COMP KIT
Return Part Number
1шт.
26
1999755C3R
REMAN-A/C COMPRESSOR
Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant
1шт.
26
1999755C3C
CORE-COMPRESSOR
Return Part Number
1шт.
27
700712718
O-RING
1шт.
28
700715944
SEAL
TRIM push on
1шт.
29
700713314
SWITCH
pressure
1шт.
30
31-1809
O-RING
O-RING
1шт.
31
135324A1
CLUTCH
and accessory kit
1шт.
Выбрано товаров: 37
