Запчасти Case IH 8880 (07-042) - AIR CONDITIONER AND HEATING ASSEMBLY (50) - CAB CLIMATE CONTROL

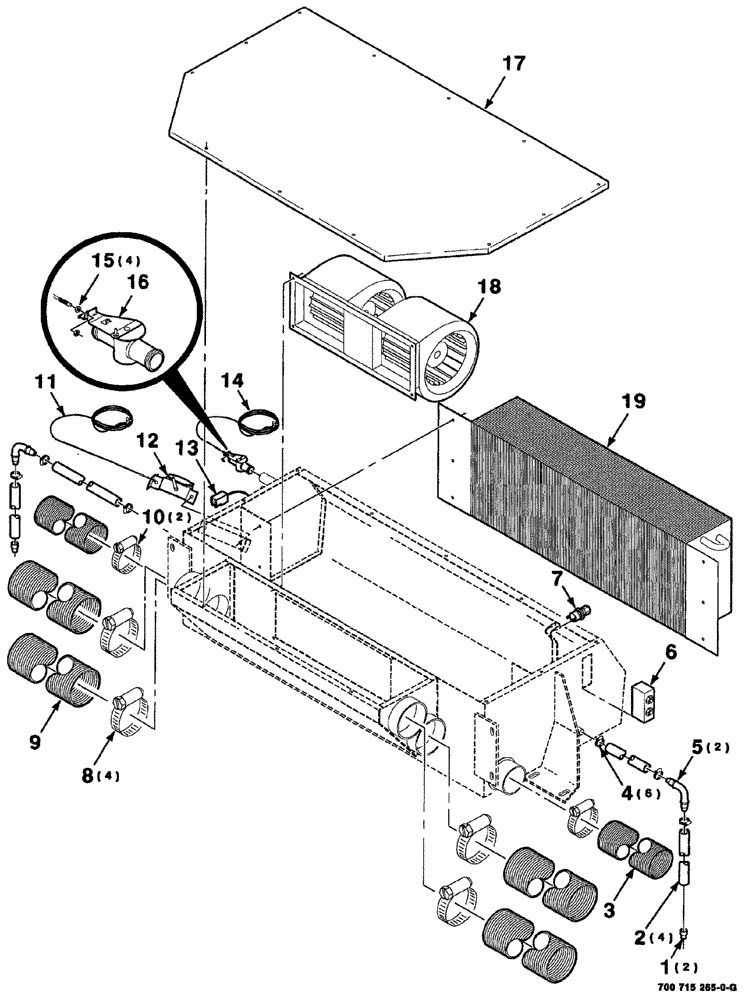

Схема запчастей Case IH 8880 - (07-042) - AIR CONDITIONER AND HEATING ASSEMBLY (50) - CAB CLIMATE CONTROL
15
16
5
4
9
8
10
17
12
7
1
2
3
19
6
13
14
11
18

Артикул

Название

Примечание

Количество

1

700717177

RESTRICTOR

air, drain

2шт.

2

700717178

TUBE

drain, (10 foot bulk)

4шт.

3

700717174

TUBE

flex, (2-1/2 inch) (18 foot bulk)

1шт.

4

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

6шт.

5

700717176

ELBOW

drain

2шт.

6

700717164

BLOCK

valve, expansion

1шт.

7

700719624

SWITCH

pressure, low

1шт.

8

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

hose

4шт.

9

700717175

TUBE

flex, (3 inch) (18 foot bulk)

1шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2шт.

11

700717171

CABLE

THERMOSTAT ASSEMBLY

1шт.

12

700717170

THERMOSTART

ASSEMBLY

1шт.

13

700717163

HARNESS

ASSEMBLY wire

1шт.

14

700717172

CABLE

ASSEMBLY valve, water

1шт.

15

700717179

NUT

jam cable control

4шт.

16

700717169

VALVE

ASSEMBLY, water

1шт.

17

700717180

COVER

ASSEMBLY

1шт.

18

700717168

BLOWER

dual, 12V, 3 speed

1шт.

19

700717166

COIL

AC/heat

1шт.

Выбрано товаров: 19
