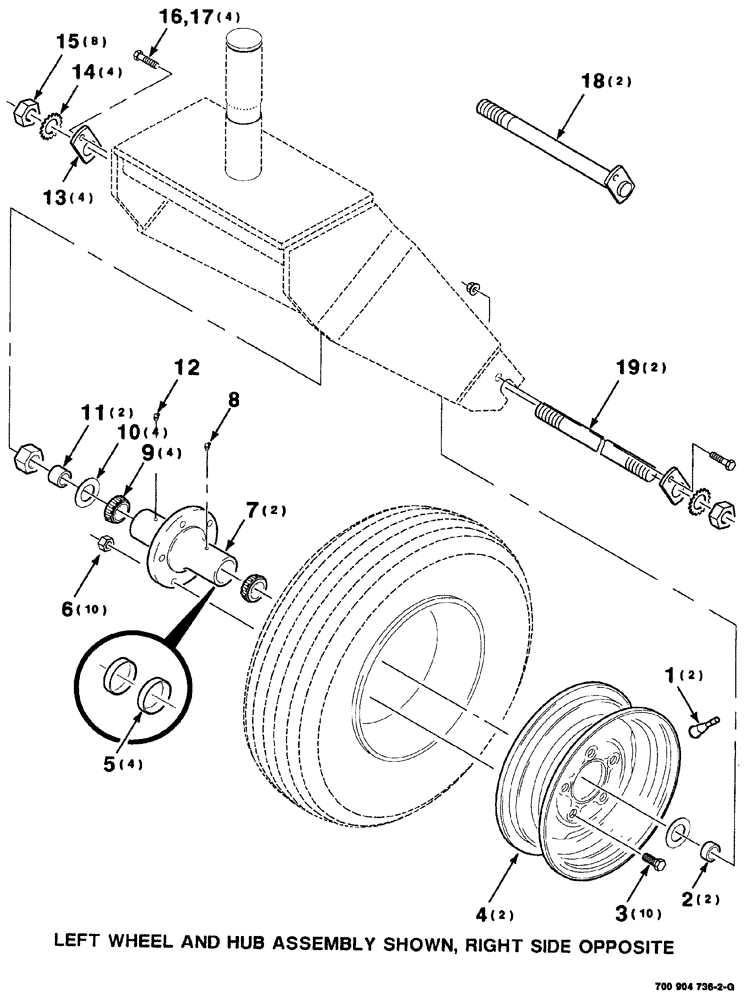

Запчасти Case IH 8880 (07-088) - TAIL WHEEL AND HUB ASSEMBLY (44) - WHEELS

1

A38261

VALVE

STEM

2шт.

2

6291975

HUB

2шт.

3

T52730

WHEEL BOLT

wheel, 9/16-18

10шт.

4

700719639

RIM

WHEEL ASSEMBLY, 16.1 x W11C

2шт.

5

50104

BEARING CUP,50.01mm OD

cup

4шт.

6

425-119

NUT,Hex, 9/16"-18, G5

10шт.

7

700134120

HUB

ASSEMBLY, (Includes Ref. 5)

2шт.

8

7792005

VENT

fitting, relief

1шт.

9

51805

ROLLER BEARING,25.4mm ID

bearing

4шт.

10

700134124

WASHER

special

4шт.

11

700101125

SPACER

2шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

305581

CLIP

4шт.

14

193-17

LOCK WASHER,Ext Tooth, 1"

4шт.

15

425-1516

JAM NUT,Jam, 1"-14, G5

1-14, HJN

8шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

4шт.

18

700134118

SHAFT

WA axle, (S.N. CFH0155001 thru CFH0155349)

2шт.

19

700152425

SHAFT

axle, (S.N. CFH0155350 and later)

2шт.
