(08-078) - HYDRAULIC CYLINDER ASSEMBLY (HEADER TILT) (2-1/2 INCH BORE X 8 INCH STROKE)

Запчасти Case IH 8880 (08-078) - HYDRAULIC CYLINDER ASSEMBLY (HEADER TILT) (2-1/2 INCH BORE X 8 INCH STROKE) (35) - HYDRAULIC SYSTEMS

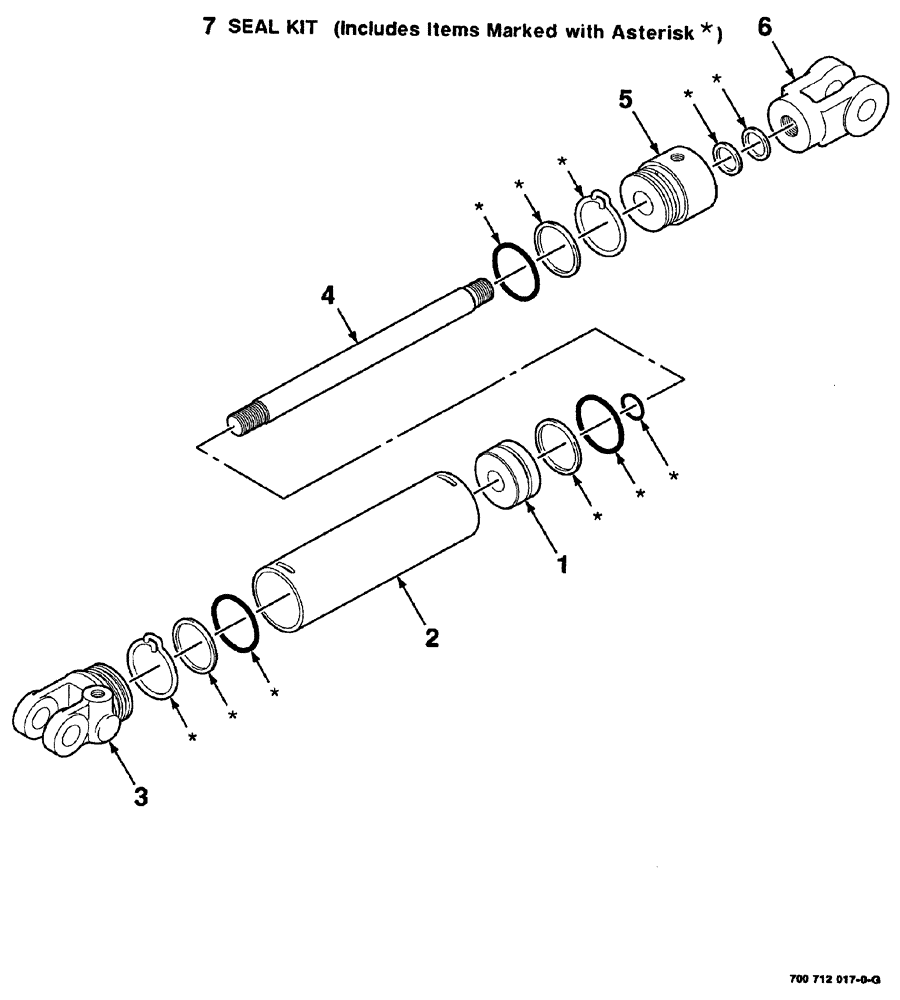

Схема запчастей Case IH 8880 - (08-078) - HYDRAULIC CYLINDER ASSEMBLY (HEADER TILT) (2-1/2 INCH BORE X 8 INCH STROKE) (35) - HYDRAULIC SYSTEMS
1
3
4
6
5
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700728106

CYLINDER ASSY.,Double Acting, 28.58mm Rod, 203.2mm Stroke

hydraulic (2-1/2 inch bore x 8 inch stroke)

1шт.

1

102905A1

PISTON

cylinder

1шт.

2

102906A1

TUBE

barrel

1шт.

3

700704894

CYLINDER HEAD

1шт.

4

102907A1

ROD

piston

1шт.

5

102909A1

BEARING

cylinder rod

1шт.

6

102908A1

END

clevis rod

1шт.

7

700728164

SEAL PACKAGE

seal, Includes items in art marked with asterisk

1шт.
