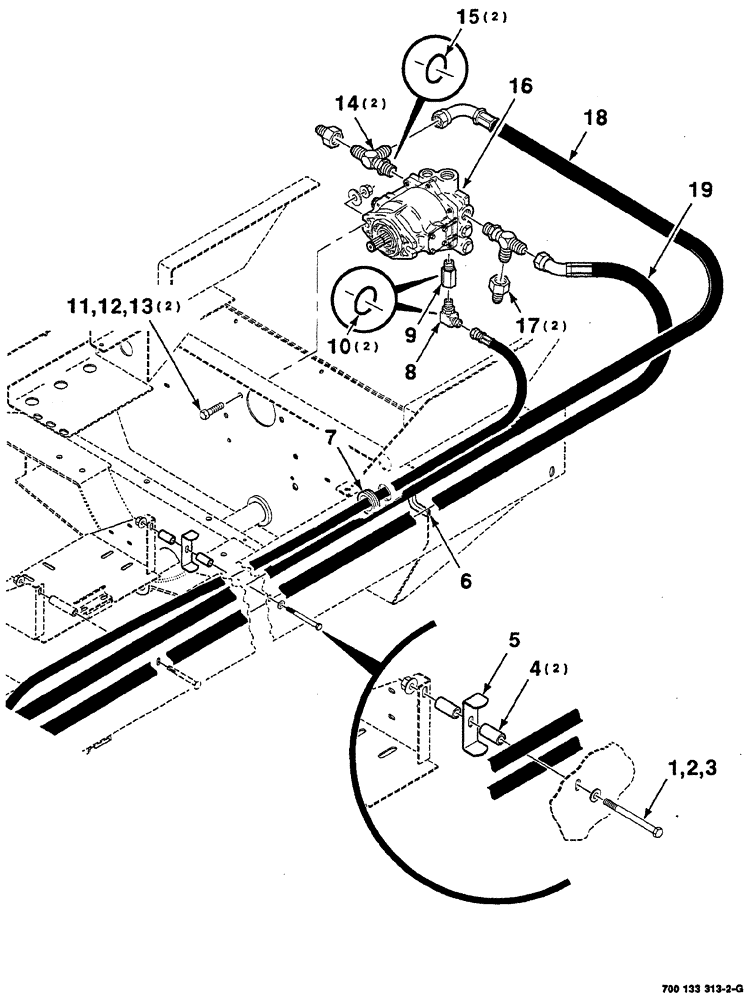

Запчасти Case IH 8870 (08-54) - HEADER DRIVE HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

SCREW cap, hex, 3/8"-16 x 4-1/2"

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

1шт.

4

700133576

SPACER

2шт.

5

700133575

RETAINER

1шт.

6

700715944

SEAL

TRIM push on

1шт.

7

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

9

7896541

VALVE

check

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

8701237

BOLT

SCREW flange, hex, 1/2"-13 x 1-1/2", grade 8

2шт.

12

700711557

WASHER

plain, wide, hardened, 1/2"

2шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

2шт.

14

700715444

FITTING

tee, Includes: Ref. 15

2шт.

15

738476

O-RING

2шт.

Part of Tee Fitting Ref.14 P/N 700715444

1шт.

16

700706979

HYDRAULIC PUMP

ASSEMBLY hydrostatic, see Figure 08-56

1шт.

700706979R

REMAN-HYD PUMP

8870 - CASE IH SELF-PROPELLED WINDROWER TRACTOR

1шт.

700706979C

CORE-HYDRAULIC PUMP

Return Number

1шт.

17

700702195

HYD CONNECTOR

REDUCER

2шт.

18

700715445

HOSE

hydraulic

1шт.

19

700715446

HOSE

hydraulic

1шт.
